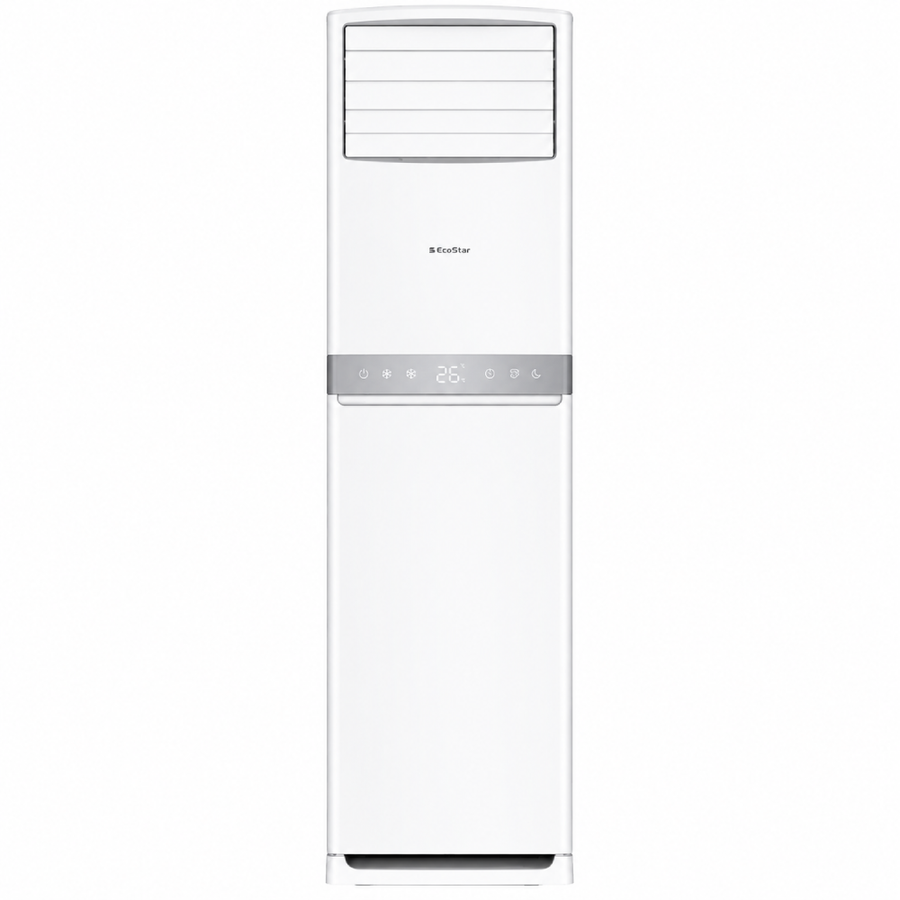

EcoStar EF-24IB01W Iceberg FSU 2 Ton Floor Standing Inverter AC

The EcoStar EF-24IB01W Iceberg FSU is a powerful 2 Ton Floor Standing Inverter Air Conditioner designed to provide efficient cooling and heating for large rooms, halls, lounges, offices, showrooms, restaurants, waiting areas, and other appropriately sized residential and commercial spaces.

With a nominal 24,000 BTU class capacity, the Iceberg FSU combines high-capacity inverter performance with an advanced floor-standing cabinet design for powerful air distribution.

The AC features Heat & Cool operation, 130–264V Low Voltage Running, 50°C Stable Operation, Gold Fin Evaporator & Condenser, 5th Generation Self-Cleaning, Precise AI Temperature Control, 30-Second Quick Cooling, Ampere Control, Environment Protecting Coating, 4D Long Air Throw up to approximately 66 feet, Power-Off Memory, and Single-Phase operation.

For customers searching for an EcoStar 2 Ton Floor Standing Inverter AC in Pakistan, the EF-24IB01W provides a strong combination of powerful airflow, energy management, durability, and year-round climate control.

2 Ton / 24,000 BTU Class Capacity

The EcoStar EF-24IB01W belongs to the 2 Ton / 24,000 BTU class of Floor Standing ACs.

Official EcoStar technical specifications list cooling capacity approximately as:

• Maximum Cooling Capacity: 23,891 BTU/h
• Average Rated Cooling Capacity: 22,184 BTU/h
• Minimum Cooling Capacity: 6,483 BTU/h

Its variable-capacity inverter system automatically adjusts cooling output according to actual indoor demand.

Powerful Heating Capacity

The EF-24IB01W also provides inverter heating for winter operation.

Official heating specifications are approximately:

• Maximum Heating Capacity: 25,597 BTU/h
• Average Rated Heating Capacity: 22,867 BTU/h
• Minimum Heating Capacity: 6,143 BTU/h

This provides effective year-round climate control from a single floor-standing system.

Heat & Cool Operation

The EcoStar Iceberg FSU EF-24IB01W provides both Cooling and Heating.

During summer, it delivers powerful cooling, while during colder weather it can provide warm conditioned air.

This makes it suitable for year-round residential and commercial use.

Inverter Technology

The inverter system regulates compressor output according to changing room requirements.

Instead of continuously operating at maximum output, the compressor can increase or decrease performance depending on cooling or heating demand.

This helps provide:

• More stable indoor temperatures
• Reduced temperature fluctuations
• Smooth compressor operation
• Controlled electricity consumption
• Efficient cooling and heating
• Improved everyday comfort

Actual energy consumption varies according to room heat load, outdoor conditions, thermostat settings, installation, and operating duration.

Floor Standing Cabinet Design

Unlike a conventional wall-mounted split AC, the EF-24IB01W uses a Floor Standing Cabinet indoor unit.

Its vertical design is particularly useful where powerful airflow across a larger indoor area is required.

It can be suitable for:

• Large living rooms
• Family lounges
• Drawing rooms
• Offices
• Conference rooms
• Showrooms
• Restaurants
• Shops
• Reception areas
• Waiting rooms

Correct AC capacity should always be selected according to the actual heat load.

4D Long Air Throw

One of the major features of the Iceberg FSU is its 4D Long Air Throw.

The system is designed to distribute conditioned air over a large indoor area rather than concentrating airflow in one direction.

Benefits include:

• Wider cooling coverage
• Improved air circulation
• Better heating distribution
• More uniform temperature
• Faster comfort in spacious areas

Air Throw up to Approximately 66 Feet

EcoStar officially advertises 4D Long Air Throw up to approximately 66 feet for this model.

This long-distance airflow makes the floor-standing system particularly useful in halls, offices, showrooms, and other deep or spacious rooms.

Actual airflow coverage depends on room layout, obstacles, installation position, and fan settings.

30-Second Quick Cooling

The EF-24IB01W features 30-Second Quick Cooling Performance.

This feature is designed to provide a rapid cooling response after startup when fast temperature adjustment is required.

It can be particularly useful when:

• Entering a hot room
• Starting the AC during peak summer
• Quick comfort is required
• Cooling a busy commercial space

Quick Cooling & Heating

In addition to its rapid cooling function, the system is designed for Quick Cooling & Heating.

This helps the AC respond quickly to temperature requirements during both summer and winter.

50°C Stable Running

The Iceberg FSU is officially designed for stable operation at ambient temperatures up to approximately 50°C.

This makes it well suited to demanding summer conditions.

Reliable high-temperature performance still depends on:

• Correct AC sizing
• Proper outdoor-unit ventilation
• Electrical supply
• Installation quality
• Clean heat exchangers
• Regular servicing

Low Voltage Running – 130V to 264V

The EF-24IB01W supports operation across approximately 130V–264V.

This wide voltage range provides added flexibility in areas where supply voltage fluctuates.

It can help provide:

• More reliable low-voltage operation
• Stable inverter performance
• Improved usability during voltage variations
• Better adaptability to local electricity conditions

Appropriate electrical protection is still recommended.

Ampere Control with Remote

The Ampere Control Function allows users to manage AC current or power demand through the remote controller.

This can be useful when:

• Managing household electrical load
• Limiting maximum power consumption
• Full cooling output is not required
• Energy-conscious operation is preferred

Actual electricity consumption depends on selected settings and cooling demand.

Precise AI Temperature Control

The EF-24IB01W features Precise AI Temperature Control with sensing accuracy up to approximately 0.1°C.

Fine temperature sensing helps the inverter system respond more precisely to changes in indoor conditions.

This can provide:

• More consistent comfort
• Reduced temperature fluctuations
• Smooth inverter adjustment
• Accurate climate control

5th Generation Self-Cleaning

The Iceberg FSU features 5th Generation Self-Cleaning technology for both the evaporator and condenser.

This advanced maintenance feature helps reduce dirt, moisture, and unwanted buildup on important heat-exchange surfaces.

Benefits include:

• Cleaner heat exchangers
• Reduced internal buildup
• Improved long-term airflow
• Better heat-transfer performance
• Easier routine maintenance

Professional periodic servicing is still recommended.

Self-Cleaning Evaporator

The indoor evaporator is included in the self-cleaning system.

This helps maintain cleaner internal conditions inside the floor-standing indoor unit.

Self-Cleaning Condenser

The outdoor condenser is also included in EcoStar's 5th Generation Self-Cleaning system.

This is an important advantage because outdoor coils can collect dust and environmental debris over time.

Gold Fin Evaporator & Condenser

Both the evaporator and condenser feature Gold Fin protection.

The protective coating helps improve resistance against:

• Corrosion
• Moisture
• Environmental exposure
• Premature coil deterioration

This supports long-term durability of the heat exchangers.

Environment Protecting Coating

The Environment Protecting Coating provides additional protection against environmental conditions.

EcoStar describes this layer as helping protect the AC from:

• Dust
• Humidity
• Corrosion

This contributes to long-term reliability.

Power-Off Memory

The Power-Off Memory Function remembers compatible operating settings after electricity is interrupted.

When power returns, the system can restore previous settings instead of requiring the user to configure the AC again.

This can be especially convenient in commercial spaces.

R32 Refrigerant

Current exact-model Pakistani retailer listings specify R32 refrigerant for the EcoStar EF-24IB01W.

R32 is widely used in modern inverter air conditioners because of its effective heat-transfer characteristics and lower Global Warming Potential compared with R410A.

For final catalog accuracy, the refrigerant printed on the actual outdoor-unit rating plate should always be treated as the final reference.

Single-Phase Operation

EcoStar officially specifies the EF-24IB01W as a Single-Phase air conditioner.

This is particularly useful because many residential and light-commercial properties in Pakistan use single-phase electrical supply.

The electrical circuit should still be correctly sized according to the AC's rated input and installation requirements.

Rated Cooling Power Consumption

Official specifications list cooling power input approximately as:

• Maximum Cooling Input: 2,800W
• Average Cooling Input: 2,320W
• Minimum Cooling Input: 600W

Because this is an inverter AC, actual power consumption can vary significantly according to cooling demand.

Rated Heating Power Consumption

Official heating input is approximately:

• Maximum Heating Input: 2,850W
• Average Heating Input: 2,320W
• Minimum Heating Input: 550W

Actual consumption varies according to room load, outdoor temperature, selected temperature, and operating conditions.

Ideal for Large Residential Spaces

The 2 Ton Floor Standing design can be suitable for appropriately sized:

• Large living rooms
• Family lounges
• Drawing rooms
• Large master rooms
• Open-plan residential areas

A heat-load calculation is recommended before choosing capacity.

Ideal for Commercial Spaces

Its high-capacity cooling and long air throw also make the EF-24IB01W suitable for appropriately sized:

• Offices
• Showrooms
• Restaurants
• Shops
• Clinics
• Waiting areas
• Reception spaces
• Meeting rooms
• Conference rooms

Commercial heat loads may be significantly higher due to lighting, equipment, occupants, glass exposure, and frequently opened doors.

EcoStar EF-24IB01W Specifications

• Brand: EcoStar
• Model: EF-24IB01W
• Series: Iceberg FSU
• Category: Floor Standing AC
• Design: Cabinet / Floor Standing
• Capacity: 2 Ton / 24,000 BTU Class
• Technology: Inverter
• Function: Heat & Cool
• Rated Cooling Max/Avg/Min: Approx. 23,891 / 22,184 / 6,483 BTU/h
• Rated Heating Max/Avg/Min: Approx. 25,597 / 22,867 / 6,143 BTU/h
• Rated Cooling Input Max/Avg/Min: Approx. 2,800 / 2,320 / 600W
• Rated Heating Input Max/Avg/Min: Approx. 2,850 / 2,320 / 550W
• Low Voltage Running: 130–264V
• Maximum Stable Ambient Temperature: Approx. 50°C
• Gold Fin Evaporator: Yes
• Gold Fin Condenser: Yes
• 5th Generation Self-Cleaning Evaporator: Yes
• 5th Generation Self-Cleaning Condenser: Yes
• Precise AI Temperature Control: Up to approx. 0.1°C
• 30-Second Quick Cooling: Yes
• Quick Cooling & Heating: Yes
• Ampere Control: Yes
• Ampere Control via Remote: Yes
• 4D Long Air Throw: Yes
• Maximum Advertised Air Throw: Up to approx. 66 feet
• Environment Protecting Coating: Yes
• Power-Off Memory: Yes
• Electrical Phase: Single Phase
• Refrigerant: R32 on current exact-model retailer listings
• Compressor Warranty: 10 Years
• Parts & Service Warranty: 5 Years

Why Choose EcoStar EF-24IB01W Iceberg FSU?

The EcoStar EF-24IB01W Iceberg FSU 2 Ton Floor Standing Inverter AC combines powerful cooling and heating with long-distance airflow and advanced inverter technology.

Its 130–264V Low Voltage Running and stable operation up to approximately 50°C make it particularly useful for Pakistan's demanding electricity and summer conditions.

The 4D Long Air Throw up to approximately 66 feet helps distribute conditioned air throughout larger indoor areas, while 30-Second Quick Cooling provides rapid comfort after startup.

Advanced features including 5th Generation Self-Cleaning, Gold Fin evaporator and condenser, AI Temperature Control, Ampere Control, Environment Protecting Coating, and Power-Off Memory provide added convenience, efficiency, and durability.

For customers searching for an EcoStar 2 Ton Floor Standing AC in Pakistan, the EF-24IB01W Iceberg FSU offers a strong combination of powerful performance, wide airflow coverage, energy management, and long-term warranty protection.

Buy EcoStar EF-24IB01W in Pakistan

If you are searching for the EcoStar EF-24IB01W price in Pakistan, this 2 Ton Iceberg FSU Floor Standing Inverter AC provides powerful year-round climate control for large residential and commercial environments.

Its combination of Heat & Cool, 4D Long Air Throw, 50°C stable running, 130–264V operation, 30-Second Quick Cooling, Self-Cleaning, Gold Fin, AI Temperature Control, and Ampere Control makes it a feature-rich Floor Standing AC for demanding applications.

Frequently Asked Questions – EcoStar EF-24IB01W Iceberg FSU

1. Is EcoStar EF-24IB01W a 2 Ton AC?

Yes. EcoStar officially categorizes it as a 2 Ton Floor Standing Inverter AC.

2. What series is EF-24IB01W?

It belongs to EcoStar's Iceberg FSU Series.

3. Is it a Floor Standing AC?

Yes. It uses a Floor Standing / Cabinet-style indoor unit.

4. Is EF-24IB01W an inverter AC?

Yes. It uses Inverter Technology.

5. Is it Heat & Cool?

Yes. EcoStar officially confirms Heat & Cool operation.

6. What is its nominal capacity?

It belongs to the 24,000 BTU / 2 Ton class.

7. What is its official rated cooling capacity?

Approximately 23,891 BTU/h maximum, 22,184 BTU/h average, and 6,483 BTU/h minimum.

8. What is its heating capacity?

Approximately 25,597 BTU/h maximum, 22,867 BTU/h average, and 6,143 BTU/h minimum.

9. Why is the rated average below 24,000 BTU?

“2 Ton / 24,000 BTU” is the nominal capacity class. An inverter AC's detailed tested output can vary above or below the nominal figure according to operating conditions.

10. Does it operate on low voltage?

Yes. EcoStar officially lists 130–264V Low Voltage Running.

11. What is the minimum listed operating voltage?

Approximately 130V according to the current official EcoStar/DWP specification.

12. What is the maximum listed voltage?

Approximately 264V.

13. Can it operate in very hot weather?

Yes. EcoStar officially advertises stable running up to approximately 50°C ambient temperature.

14. Is EF-24IB01W a T3 AC?

EcoStar's current official page does not label EF-24IB01W as a T3 model. It instead specifically guarantees 50°C Stable Running. Do not add T3 to the Shopify specification unless the actual unit rating plate confirms T3.

15. Does it have 4D Airflow?

Yes. EcoStar specifies 4D Long Air Throw.

16. How far can it throw air?

EcoStar officially advertises air throw up to approximately 66 feet.

17. Is 66 feet guaranteed in every room?

No. Actual airflow reach depends on fan speed, room layout, installation position, furniture, partitions, and other obstructions.

18. Does it have 30-second Quick Cooling?

Yes. EcoStar officially lists 30 Seconds Quick Cooling Performance.

19. Does it provide quick heating?

Yes. EcoStar also specifies Quick Cooling & Heating.

20. Does it have AI Temperature Control?

Yes. It includes Precise AI Temperature Control.

21. How accurate is the AI temperature control?

EcoStar advertises sensing/control precision up to approximately 0.1°C.

22. Does it have Self-Cleaning?

Yes. It uses 5th Generation Self-Cleaning technology.

23. Does Self-Cleaning work on the evaporator?

Yes. The evaporator is included.

24. Does Self-Cleaning work on the condenser too?

Yes. EcoStar specifically states 5th Generation Self-Cleaning Evaporator & Condenser.

25. Does it have Gold Fin protection?

Yes. Both the evaporator and condenser have Gold Fin protection.

26. What is Environment Protecting Coating?

It is an additional protective layer designed to shield the AC against dust, humidity, and corrosion.

27. Does EF-24IB01W have Ampere Control?

Yes. EcoStar officially confirms Ampere Control with Remote Controller.

28. What does Ampere Control do?

It allows the user to manage or limit AC power/current demand according to operating requirements.

29. Does it have Power-Off Memory?

Yes. Power-Off Memory is officially included.

30. What does Power-Off Memory do?

It remembers compatible operating settings after a power interruption so they can be restored when operation resumes.

31. Is the AC single phase?

Yes. EcoStar officially specifies Single Phase.

32. Which refrigerant does it use?

Current exact-model Pakistani retailer listings specify R32 refrigerant.

33. Is R32 stated on EcoStar's official online page?

The current official DWP product page does not display a refrigerant field. For maximum accuracy, confirm R32 from the outdoor-unit rating plate.

34. What is its average cooling power input?

Approximately 2,320W under official rated conditions.

35. What is its maximum cooling input?

Approximately 2,800W.

36. What is its minimum cooling input?

Approximately 600W.

37. What is its average heating input?

Approximately 2,320W.

38. What is its maximum heating input?

Approximately 2,850W.

39. What is its minimum heating input?

Approximately 550W.

40. Is it suitable for large rooms?

Yes. Its 2 Ton capacity and long air throw can make it suitable for appropriately sized larger rooms.

41. Is it suitable for a hall?

Yes, provided a heat-load calculation shows that 2 Ton capacity is sufficient.

42. Can it be used in an office?

Yes. It can be suitable for offices, conference rooms, and reception areas.

43. Is it suitable for a showroom?

Yes. Its Floor Standing design and long air throw are useful for appropriately sized showrooms.

44. Can it be used in restaurants?

Yes, but restaurants may have higher heat loads due to occupants, lighting, doors, and equipment, so professional capacity calculation is important.

45. Is a Floor Standing AC portable?

No. The cabinet stands on the floor, but it is still a permanently installed split AC connected to an outdoor unit.

46. What is the compressor warranty?

EcoStar/DWP officially lists 10 Years Compressor Warranty.

47. What is the parts and service warranty?

EcoStar/DWP officially lists 5 Years Parts & Service Warranty.

48. Where can I buy EcoStar EF-24IB01W in Pakistan?

The EcoStar EF-24IB01W Iceberg FSU 2 Ton Floor Standing AC is available through EcoStar/DWP dealers and electronics retailers across Pakistan. Buyers should compare current pricing, installation, warranty, delivery, and after-sales support before purchase.
