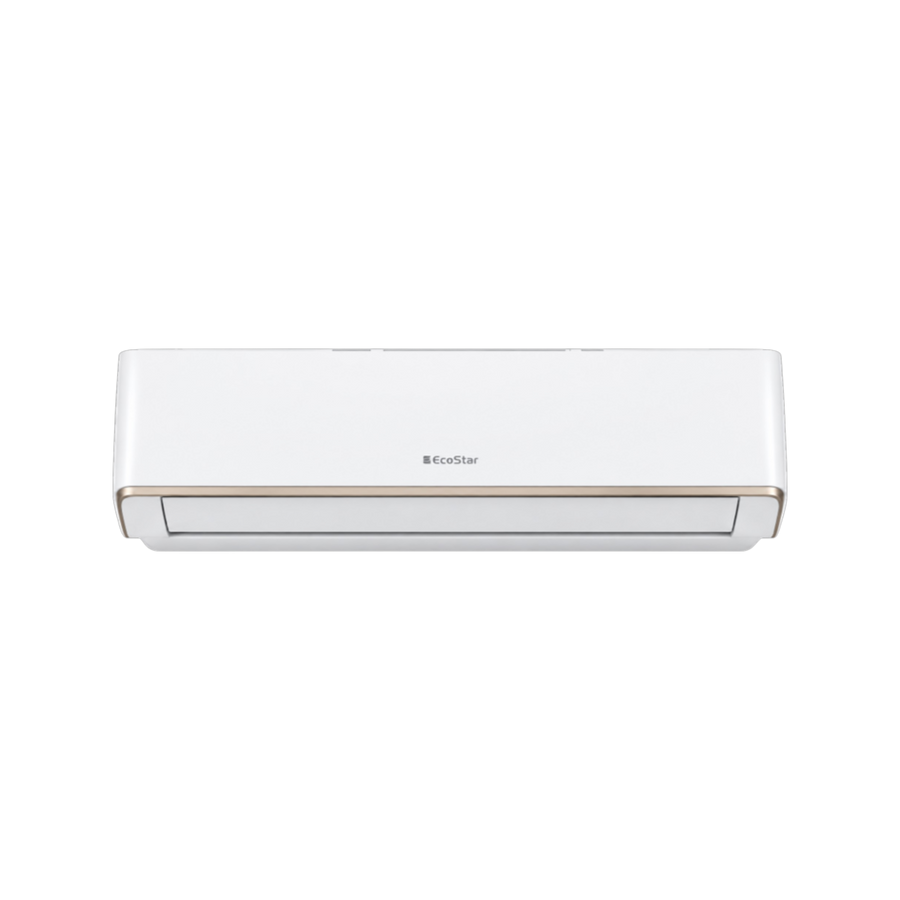

EcoStar ES-18DU02WC Premium 1.5 Ton Duke Inverter AC

The EcoStar ES-18DU02WC Premium is a feature-rich 1.5 Ton Duke Series Inverter Split AC designed to provide efficient cooling and heating for bedrooms, living rooms, family lounges, offices, and other appropriately sized medium to large indoor spaces.

With an 18,000 BTU class capacity, the Duke Premium combines powerful inverter performance with advanced comfort, durability, and energy-management features.

It features R32 Refrigerant, Self-Cleaning Evaporator, Gold Fin Evaporator & Condenser, 4D Airflow, 5-Step Power Control, Wi-Fi Ready USB connectivity, 150–270V Low Voltage Operation, 65Hz Quick Cooling & Heating, Multi-Health Filters, AI Temperature Control, Solar Compatibility, Environmental Protection Coating, and Labyrinth PCB Protection.

Its clean White finish makes it a suitable choice for modern residential and office interiors.

1.5 Ton / 18,000 BTU Capacity

The EcoStar Duke 18DU02 belongs to the 1.5 Ton / 18,000 BTU category.

Its variable inverter cooling specifications are approximately:

• Maximum Cooling Capacity: 19,448 BTU/h
• Average Rated Cooling Capacity: 17,401 BTU/h
• Minimum Cooling Capacity: 4,436 BTU/h

The variable output allows the inverter system to increase cooling when demand is high and reduce output after comfortable indoor conditions are reached.

Heating Capacity

The AC also provides inverter heating for winter use.

Its current rated heating range is approximately:

• Maximum Heating Capacity: 18,766 BTU/h
• Average Rated Heating Capacity: 17,742 BTU/h
• Minimum Heating Capacity: 4,436 BTU/h

This allows the AC to provide year-round climate control.

Heat & Cool Operation

The EcoStar 18DU02 provides Heat & Cool functionality.

It can provide cooling during hot summer weather and heating during colder conditions from the same split air-conditioning system.

Inverter Technology

The inverter system automatically adjusts compressor output according to room requirements.

Instead of continuously operating at maximum power, it can increase or reduce performance according to actual cooling or heating demand.

This helps provide:

• Stable room temperature
• Reduced temperature fluctuations
• Smooth operation
• Controlled electricity consumption
• Efficient cooling and heating

Actual electricity consumption depends on room heat load, thermostat settings, outdoor conditions, insulation, and installation quality.

R32 Refrigerant

The EcoStar 18DU02 uses R32 refrigerant.

R32 is widely used in modern inverter air conditioners and provides effective heat-transfer performance while having a lower Global Warming Potential than R410A.

Real 4-Star Energy Rating

Current Premium-series Pakistani listings market the 18DU02 WC Premium as a Real 4-Star Product.

The inverter system and adjustable power control are designed to support energy-conscious operation.

Actual electricity savings vary according to room conditions and usage.

5-Step Power Control

The 5-Step Power Limit Remote provides five selectable operating-power levels.

This allows users to manage the maximum AC power demand according to their cooling requirements and available electrical capacity.

It can be useful for:

• Managing household electrical load
• Reducing maximum AC demand
• Energy-conscious operation
• Solar-powered operation
• Situations where maximum cooling output is unnecessary

Low Voltage Operation – 150V to 270V

The EcoStar 18DU02 is designed to operate across approximately 150–270V.

This wide voltage range provides additional flexibility where electricity supply fluctuates.

Suitable electrical protection is still recommended where voltage conditions are severe.

65Hz Quick Cooling & Heating

The Duke Series uses a 65Hz startup strategy for faster cooling and heating after startup.

This allows the compressor to increase its operating performance quickly when rapid room-temperature adjustment is required.

It is particularly useful when entering a hot room or when faster winter heating is needed.

4D Airflow

The 4D Airflow System distributes conditioned air in multiple directions.

It helps provide:

• Wider room coverage
• Better cooling distribution
• Improved heating circulation
• More uniform indoor temperatures
• Reduced concentrated airflow

Strong Double Intake Air Door

Current WC Premium listings also specify a Strong Double Intake Air Door.

The improved intake design helps the indoor unit draw room air effectively before cooling or heating it and returning conditioned air into the room.

Self-Cleaning Evaporator

The Self-Cleaning Evaporator helps reduce moisture and buildup inside the indoor unit.

It supports:

• Cleaner internal surfaces
• Reduced dust accumulation
• Better airflow
• Easier routine maintenance
• Reliable long-term performance

Regular filter cleaning and professional servicing are still recommended.

Gold Fin Evaporator & Condenser

Both the evaporator and condenser feature Gold Fin protection.

This coating helps improve resistance against moisture and corrosion.

Benefits include:

• Better heat-exchanger durability
• Improved corrosion protection
• Reliable long-term performance
• Protection against environmental exposure

Environmental Protection Coating – EPC

The Environmental Protection Coating (EPC) provides an additional protective layer to important AC components.

It is designed to improve durability in demanding environments involving dust and moisture.

Labyrinth Design PCB Protection

The Labyrinth PCB and outdoor-unit protection design helps protect sensitive electronic components from:

• Dust
• Moisture
• Rain exposure
• Short-circuit risks

This provides additional protection for the inverter electronics.

Wi-Fi Ready

The EcoStar Duke 18DU02 is Wi-Fi Ready with USB connectivity.

Compatible smart-control functionality can allow convenient AC operation through a smartphone.

Depending on the supplied package, a compatible Wi-Fi USB accessory may be required.

AI Temperature Control

The AC includes Precise AI Temperature Control with sensing accuracy up to approximately 0.1°C.

Fine temperature sensing helps the inverter system make smoother adjustments and maintain more consistent indoor comfort.

Multi-Health Filters

The Multi-Health Filter system helps capture dust and selected airborne impurities from circulated room air.

Regular filter cleaning is important for maintaining airflow and filtration performance.

Low-Refrigerant Self-Diagnosis

The AC includes Self-Diagnosis for Low Refrigerant.

This function can help identify operating conditions that may indicate insufficient refrigerant.

Any refrigerant problem should be inspected by a qualified AC technician.

Solar Compatible

The EcoStar Duke 18DU02 is officially listed as Solar Compatible.

Actual solar operation depends on:

• Solar inverter capacity
• Available PV output
• Battery or grid configuration
• Other connected appliances
• Electrical installation

A correctly designed solar system should be used.

Large LCD Remote

The AC features a Large LCD Remote Control for convenient viewing and operation.

The remote also incorporates the 5-Step Power Control system.

IPX5 Water-Resistant Remote

The Duke Series remote is listed with IPX5 water-resistance protection.

This provides additional protection against water exposure under applicable test conditions, but the remote should not be submerged.

Low Standby Consumption

Current WC Premium listings specify approximately 0.3W standby power consumption.

This helps reduce unnecessary electricity consumption while the AC remains powered but is not actively cooling or heating.

Cooling Power Consumption

Official Duke 1.5 Ton specifications list:

• Maximum Cooling Input: 2,100W
• Average Cooling Input: 1,660W
• Minimum Cooling Input: 290W

The wide range reflects variable inverter operation.

Heating Power Consumption

Heating input is approximately:

• Maximum Heating Input: 1,800W
• Average Heating Input: 1,530W
• Minimum Heating Input: 250W

Actual electricity use varies according to room conditions and system demand.

Premium White Finish

The WC Premium variant features a clean White finish suitable for:

• Master bedrooms
• Living rooms
• Family lounges
• Offices
• Drawing rooms
• Modern interiors

EcoStar 18DU02 WC Premium Specifications

• Brand: EcoStar
• Retail Model: ES-18DU02WC PRM / 18DU02 WC Premium
• Current DWP White Model Code: ES-18DU02WG
• Technical Family: DUKE ES-18DU02
• Series: Duke Series / Duke Premium
• Capacity: 1.5 Ton / 18,000 BTU Class
• Type: Inverter Split AC
• Function: Heat & Cool
• Color: White
• Refrigerant: R32
• Cooling Capacity Max/Avg/Min: Approx. 19,448 / 17,401 / 4,436 BTU/h
• Heating Capacity Max/Avg/Min: Approx. 18,766 / 17,742 / 4,436 BTU/h
• Cooling Input Max/Avg/Min: Approx. 2,100 / 1,660 / 290W
• Heating Input Max/Avg/Min: Approx. 1,800 / 1,530 / 250W
• Low Voltage Operation: 150–270V
• Self-Cleaning Evaporator: Yes
• Gold Fin Evaporator: Yes
• Gold Fin Condenser: Yes
• 4D Airflow: Yes
• Strong Double Intake Air Door: Current Premium listing
• Quick Cooling & Heating: 65Hz Startup
• 5-Step Power Control: Yes
• Wi-Fi Ready: Yes
• Wi-Fi Connectivity: USB
• Multi-Health Filters: Yes
• Low-Refrigerant Self-Diagnosis: Yes
• AI Temperature Control: Up to approx. 0.1°C precision
• Labyrinth PCB Protection: Yes
• Environmental Protection Coating: Yes
• Solar Compatible: Yes
• Large LCD Remote: Yes
• IPX5 Remote Protection: Yes
• Standby Power: Approx. 0.3W on current WC Premium listings
• Compressor Warranty: 10 Years
• Parts & Service Warranty: 5 Years

Why Choose EcoStar 18DU02 WC Premium?

The EcoStar ES-18DU02WC Premium 1.5 Ton Inverter AC combines powerful cooling and heating with advanced energy-management, airflow, smart-control, and durability technologies.

Its 150–270V Low Voltage Operation, R32 refrigerant, 4D Airflow, 5-Step Power Control, Self-Cleaning Evaporator, Gold Fin coils, Wi-Fi Ready connectivity, Solar Compatibility, and Multi-Health Filters provide a comprehensive feature package.

Advanced features such as AI Temperature Control, low-refrigerant self-diagnosis, Labyrinth PCB Protection, EPC, and 65Hz Quick Cooling & Heating provide additional comfort and reliability.

For customers searching for an EcoStar 1.5 Ton Inverter AC in Pakistan, the Duke 18DU02 White Premium is a strong option for modern homes and offices.

Ideal for Medium to Large Rooms

Its 1.5 Ton capacity can be suitable for appropriately sized:

• Master bedrooms
• Living rooms
• Family lounges
• Drawing rooms
• Offices
• Meeting rooms

Actual room suitability depends on heat load rather than room type alone.

Buy EcoStar 18DU02 WC Premium in Pakistan

If you are searching for the EcoStar 18DU02 WC Premium price in Pakistan, this 1.5 Ton Duke Inverter AC combines Heat & Cool performance with advanced comfort and efficiency features.

Its combination of R32, 4D Airflow, 150–270V operation, 5-Step Power Control, Self-Cleaning, Gold Fin, Wi-Fi Ready functionality, Solar Compatibility, AI Temperature Control, and Multi-Health Filters makes it a feature-rich option for year-round use.

Frequently Asked Questions – EcoStar 18DU02 WC Premium

1. Is EcoStar 18DU02 WC Premium a 1.5 Ton AC?

Yes. It belongs to the 1.5 Ton / 18,000 BTU class.

2. What is the exact model code?

Retailers commonly list ES-18DU02WC PRM, while EcoStar/DWP's current White Duke listing uses ES-18DU02WG.

3. Which model code should I use?

Use the exact code printed on your physical carton or rating plate. If your stock says WC PRM, retain that inventory code.

4. What series is this AC?

It belongs to EcoStar's Duke Series / Duke Premium range.

5. Is it Heat & Cool?

Yes. It provides Cooling and Heating.

6. What is its cooling capacity?

The technical table lists approximately 19,448 / 17,401 / 4,436 BTU/h maximum, average, and minimum.

7. What is its heating capacity?

Approximately 18,766 / 17,742 / 4,436 BTU/h maximum, average, and minimum.

8. Does it use R32 refrigerant?

Yes. R32 is officially specified for the current Duke 1.5 Ton series.

9. Is this a T3 AC?

No. Current exact-model retailer specifications classify this Duke model as T1, and DWP does not advertise it as T3. Do not add T3 unless your exact unit states otherwise.

10. Does it have a 4-star rating?

Current WC Premium retailer listings advertise it as a Real 4-Star Product.

11. Does it operate on low voltage?

Yes. The specified range is approximately 150–270V.

12. Does it have 5-Step Power Control?

Yes. It includes a 5-Step Power Limit Remote.

13. What does 5-Step Power Control do?

It allows the user to restrict maximum AC power demand according to their requirements.

14. Does it have 4D Airflow?

Yes. 4D Airflow is officially listed.

15. Does it have a Double Intake Air Door?

Current WC Premium listings specify a Strong Double Intake Air Door.

16. Does it have Self-Cleaning?

Yes. It features a Self-Cleaning Evaporator.

17. Does it have Gold Fin?

Yes. Both the evaporator and condenser have Gold Fin protection.

18. What is EPC?

EPC stands for Environmental Protection Coating, designed to improve component durability.

19. What is Labyrinth PCB Protection?

It is a protective design intended to reduce exposure of electronic components to dust, moisture, rain, and short-circuit risks.

20. Does it have Wi-Fi?

It is Wi-Fi Ready with USB connectivity.

21. Does Wi-Fi Ready mean built-in Wi-Fi?

Not necessarily. A compatible USB Wi-Fi accessory may be required depending on the supplied configuration.

22. Can it be controlled from a phone?

Compatible smartphone control is supported when the appropriate Wi-Fi setup is installed.

23. Is this AC Solar Compatible?

Yes. DWP officially lists the Duke Series as Solar Compatible.

24. Does it provide fast cooling?

Yes. It features 65Hz Quick Cooling & Heating startup.

25. What is 65Hz startup?

It allows the compressor to increase performance rapidly after startup for faster initial cooling or heating.

26. Does it have AI Temperature Control?

Yes. It provides precise sensing and control up to approximately 0.1°C.

27. Does it have health filters?

Yes. The model includes Multi-Health Filters.

28. Can it detect low refrigerant?

Yes. It includes Self-Diagnosis for Low Refrigerant.

29. Does it have an LCD remote?

Yes. It uses a Large LCD Remote Control.

30. Is the remote water resistant?

Yes. Current Duke specifications list IPX5 water resistance for the remote design.

31. What is the standby consumption?

Current WC Premium listings specify approximately 0.3W.

32. What is the average cooling power consumption?

Approximately 1,660W under the rated conditions.

33. What is the maximum cooling input?

Approximately 2,100W.

34. What is the minimum cooling input?

Approximately 290W.

35. What is the average heating input?

Approximately 1,530W.

36. What is the maximum heating input?

Approximately 1,800W.

37. What is the minimum heating input?

Approximately 250W.

38. Is the AC suitable for a master bedroom?

Yes. Its 1.5 Ton capacity can be suitable for appropriately sized master bedrooms.

39. Can it be used in a lounge?

Yes. It can be suitable for appropriately sized living rooms and family lounges.

40. Is it suitable for an office?

Yes. It can be suitable for medium-sized offices when the calculated heat load matches its capacity.

41. What color is the WC Premium model?

It is a White variant.

42. Does EcoStar offer Black and Grey Duke models too?

Yes. The Duke family is also available in Black and Grey Glossy variants.

43. What is the compressor warranty?

The current official DWP technical table lists 10 Years Compressor Warranty.

44. What is the Parts & Service warranty?

The current official DWP technical table lists 5 Years Parts & Service Warranty.

45. Should I use the 1-year general warranty shown by some sellers?

For the product page, the stronger current manufacturer specification is 10 Years Compressor + 5 Years Parts & Service, subject to the official warranty card supplied with the unit.

46. Where can I buy EcoStar 18DU02 WC Premium in Pakistan?

The EcoStar Duke 1.5 Ton White Inverter AC is available through EcoStar/DWP dealers and electronics retailers across Pakistan. Buyers should compare current pricing, warranty, installation, delivery, and after-sales service.
