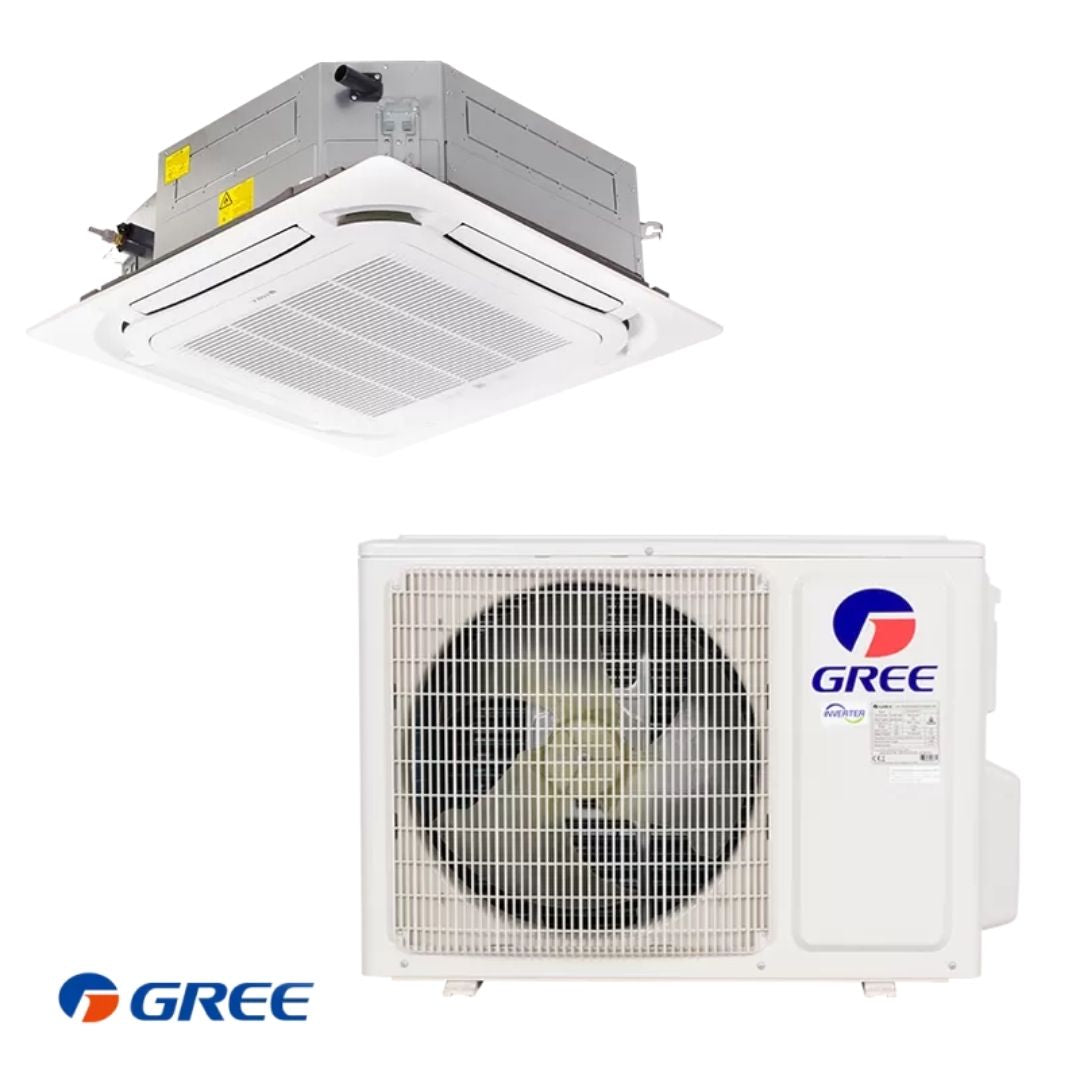

GREE GUD71T/B-S 2 Ton Inverter Ceiling Cassette AC

The GREE GUD71T/B-S is a powerful 2 Ton U-Match DC Inverter Ceiling Cassette AC designed to provide efficient cooling and heating for offices, restaurants, shops, showrooms, halls, meeting rooms, and other medium to large commercial spaces.

With a rated cooling capacity of approximately 7.1 kW / 24,000 BTU class and heating capacity of approximately 8.0 kW, the GREE GUD71T/B-S combines strong commercial climate-control performance with efficient DC inverter operation.

Its 4-Way Air Discharge, approximately 1,400 m³/h airflow, built-in drain pump, washable filter, Wi-Fi connectivity, wired control support, optional wireless control, power-failure recovery, and R32 refrigerant make it a practical ceiling-mounted solution for modern commercial environments.

U-Match DC Inverter Technology

The GREE U-Match DC Inverter system continuously adjusts compressor output according to the cooling or heating requirements of the indoor space.

Instead of operating continuously at maximum capacity, the inverter system can increase or decrease output according to room demand.

This helps provide:

• More stable indoor temperatures
• Efficient electricity consumption
• Reduced temperature fluctuations
• Smoother compressor operation
• Comfortable cooling and heating
• Better performance during varying room loads

Actual electricity consumption depends on room heat load, outdoor conditions, installation, temperature settings, operating duration, and maintenance.

2 Ton / 24,000 BTU-Class Cooling

The GREE GUD71T/B-S belongs to the 2 Ton commercial cassette AC category.

Its rated cooling output is approximately 7.1 kW, making it suitable for appropriately sized commercial and residential applications where wall-mounted airflow may not provide the desired coverage.

Potential applications include:

• Offices
• Conference rooms
• Restaurants
• Cafés
• Retail stores
• Showrooms
• Clinics
• Salons
• Commercial halls
• Large rooms
• Reception areas

A professional heat-load calculation should be performed before installation because commercial spaces can have significantly different cooling requirements based on occupancy, lighting, windows, equipment, ceiling height, and insulation.

Powerful Heating Performance

The GREE GUD71T/B-S also provides Heat & Cool functionality.

Its rated heating capacity is approximately 8.0 kW, allowing the cassette system to provide warm air during colder weather as well as cooling during summer.

This makes it suitable for year-round climate control.

4-Way Air Discharge

One of the major advantages of a cassette AC is its 4-Way Air Discharge design.

Conditioned air is distributed in four directions from the ceiling-mounted panel rather than from a single wall-mounted outlet.

This helps provide:

• Wider room coverage
• More uniform cooling
• Better air circulation
• Improved heating distribution
• Reduced hot and cold spots
• Comfortable airflow in open spaces

The ceiling position also allows conditioned air to spread effectively across the occupied area.

High Airflow – Approximately 1,400 m³/h

The GREE GUD71T/B-S provides a rated airflow of approximately 1,400 m³/h.

This high airflow capacity helps move conditioned air effectively across larger rooms and commercial areas.

Strong airflow is particularly useful in environments such as offices, shops, restaurants, meeting rooms, and reception areas where air needs to circulate across a wider floor area.

Long and Wide Air Distribution

The combination of high airflow and four-way air discharge allows the GREE cassette system to distribute conditioned air across a broad indoor area.

Unlike a conventional wall-mounted AC that sends air primarily from one side of the room, the ceiling cassette occupies a more central position and can distribute air in several directions.

This makes it especially useful for open-plan and commercial environments.

Swing Louvers

The integrated Swing Louvers help automatically direct airflow across the room.

Swing operation reduces concentrated airflow in one fixed direction and helps distribute cool or warm air more evenly.

This improves comfort for occupants positioned in different parts of the room.

Built-In Condensate Drain Pump

The GREE GUD71T/B-S includes a built-in condensate drain pump.

The pump provides approximately 1,000 mm lift, giving installers greater flexibility when routing condensate drainage above a suspended ceiling.

This is an important feature in commercial installations where gravity drainage alone may not be practical.

Correct drain-pipe installation and insulation are still essential for reliable operation.

Washable Air Filter

The ceiling cassette includes a washable air filter designed to capture dust and airborne particles passing through the indoor unit.

The reusable filter can be removed and cleaned periodically.

Regular filter maintenance helps support:

• Proper airflow
• Effective cooling
• Efficient heating
• Cleaner air circulation
• Reduced internal dust accumulation
• Long-term AC efficiency

R32 Refrigerant

The GREE GUD71T/B-S uses R32 refrigerant in the current U-Match R32 configuration.

R32 is widely used in modern inverter air-conditioning systems because of its effective heat-transfer performance and comparatively lower environmental impact than several older refrigerants.

For final installation and servicing requirements, technicians should follow the refrigerant information shown on the actual outdoor-unit rating plate.

Wi-Fi Ready / Pre-Equipped Wi-Fi

The GREE GUD71T/B-S is listed as pre-equipped with Wi-Fi capability in current technical product information.

Compatible smart control can provide convenient access to supported functions depending on the controller, application, and regional configuration.

This adds modern connectivity to a commercial ceiling cassette system.

Wired Controller Support

The U-Match cassette platform supports wired controller operation.

A wired wall controller is particularly convenient in:

• Offices
• Restaurants
• Shops
• Meeting rooms
• Commercial buildings
• Reception areas

It provides a fixed control point and reduces the likelihood of the controller being misplaced.

Optional Wireless Remote Control

Depending on the supplied configuration and market, the GREE cassette system can also support a wireless infrared remote control.

This provides convenient control over compatible temperature, operating mode, fan, and airflow functions.

The exact remote/controller supplied should be confirmed with the seller before purchase.

Power Failure Recovery

The Power Failure Recovery / Auto Restart functionality allows the system to resume compatible operation after electricity is restored following a power interruption.

This can be particularly valuable in commercial environments where manually restarting multiple climate-control units would be inconvenient.

Low-Noise Commercial Operation

The GREE GUD71T/B-S is designed for comfortable indoor operation.

Depending on fan setting, listed indoor sound-pressure levels are approximately 39–43 dB(A).

This makes it appropriate for environments where both strong airflow and comfortable noise levels are important, such as:

• Offices
• Conference rooms
• Restaurants
• Clinics
• Shops
• Reception areas

Actual noise depends on installation, fan setting, ceiling construction, and room acoustics.

Efficient Cooling Power

Rated cooling power input is approximately 2.05 kW under specified test conditions.

Because this is an inverter system, compressor output and electricity consumption can vary according to actual cooling demand.

This variable operation helps the system maintain room temperature without continuously operating at maximum output.

Efficient Heating Operation

During heating operation, rated electrical input is approximately 2.1 kW, depending on system configuration and test conditions.

Actual heating consumption varies according to outdoor temperature, selected indoor temperature, installation, and building heat loss.

Wide Inverter Capacity Range

The GUD71T/B-S is designed to vary its output according to demand.

Its listed cooling capacity range is approximately 2.4–8.0 kW, while heating can vary approximately 2.2–9.0 kW.

This allows the inverter system to reduce output during lighter loads and increase performance when stronger cooling or heating is needed.

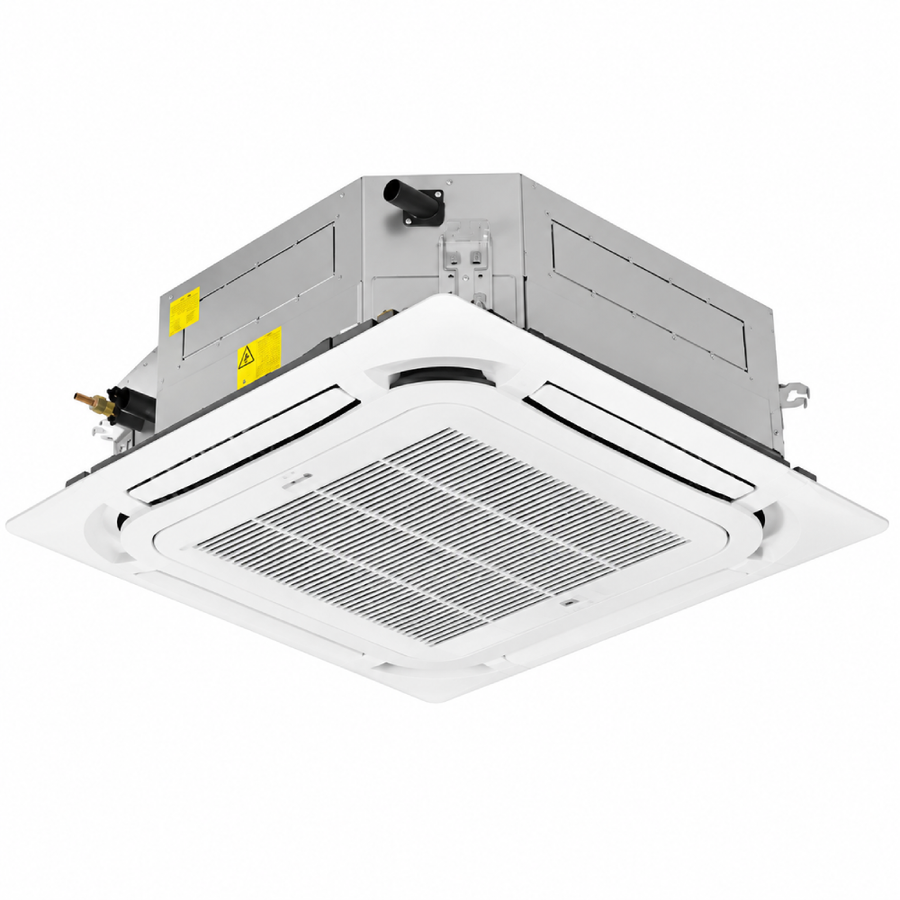

Recessed Ceiling Installation

The indoor cassette unit is installed primarily above a suspended ceiling, with the decorative cassette panel visible from inside the room.

This provides a clean commercial appearance without requiring a large wall-mounted indoor unit.

Cassette installation is particularly attractive for modern:

• Offices
• Restaurants
• Retail stores
• Showrooms
• Clinics
• Corporate spaces

Adequate ceiling space and access for servicing must be provided during installation.

Compact Cassette Indoor Unit

The indoor cassette body measures approximately:

• Width: 840 mm
• Depth: 840 mm
• Height: 240 mm

The decorative panel is approximately 950 × 950 mm.

These dimensions should be considered during ceiling planning and installation.

Built for Commercial Installation Flexibility

The GREE U-Match system supports relatively flexible refrigerant piping arrangements.

For the GUD71 system, technical documentation lists:

• Maximum piping length: Up to approximately 50 meters
• Maximum height difference: Up to approximately 25 meters

This can provide useful installation flexibility in commercial buildings where the outdoor unit cannot be positioned immediately beside the indoor cassette.

Final piping design must be completed by a qualified HVAC installer.

GREE GUD71T/B-S Specifications

• Brand: GREE
• Model: GUD71T/B-S
• Series: U-Match
• Indoor Type: Ceiling Cassette
• Capacity: 2 Ton / 24,000 BTU Class
• Rated Cooling Capacity: Approx. 7.1 kW
• Cooling Range: Approx. 2.4–8.0 kW
• Rated Heating Capacity: Approx. 8.0 kW
• Heating Range: Approx. 2.2–9.0 kW
• Technology: DC Inverter
• Function: Heat & Cool
• Air Distribution: 4-Way
• Rated Airflow: Approx. 1,400 m³/h
• Swing Louvers: Yes
• Air Filter: Washable
• Built-In Drain Pump: Yes
• Drain Pump Lift: Approx. 1,000 mm
• Wi-Fi: Pre-Equipped / Ready
• Wired Controller: Supported
• Wireless Remote: Optional / Configuration Dependent
• Power Failure Recovery: Yes
• Indoor Sound Pressure: Approx. 39–43 dB(A)
• Rated Cooling Input: Approx. 2.05 kW
• Rated Heating Input: Approx. 2.1 kW
• Power Supply: 220–240V, Single Phase, 50/60Hz depending on configuration
• Refrigerant: R32
• Indoor Unit Dimensions: Approx. 840 × 840 × 240 mm
• Panel Dimensions: Approx. 950 × 950 × 52 mm
• Indoor Unit Weight: Approx. 29 kg
• Drain Connection: Approx. 25 mm
• Liquid Pipe: Approx. 9.52 mm / 3/8 inch
• Gas Pipe: Approx. 15.88 mm / 5/8 inch
• Maximum Piping Length: Approx. 50 m
• Maximum Height Difference: Approx. 25 m
• Installation: Recessed Ceiling Cassette

Why Choose GREE GUD71T/B-S?

The GREE GUD71T/B-S 2 Ton Inverter Ceiling Cassette AC combines powerful commercial cooling with discreet ceiling installation and wide air distribution.

Its 7.1 kW cooling output, DC Inverter Technology, 4-Way Air Discharge, approximately 1,400 m³/h airflow, built-in 1,000 mm drain pump, Wi-Fi capability, washable filter, and Heat & Cool functionality make it suitable for modern commercial environments.

Unlike conventional wall-mounted units, the centrally positioned cassette panel distributes conditioned air in four directions, helping provide more uniform comfort across larger spaces.

For businesses searching for a GREE 2 Ton Inverter Cassette AC in Pakistan, the GUD71T/B-S provides a strong combination of performance, installation flexibility, smart connectivity, and professional appearance.

Ideal for Offices & Commercial Spaces

The GREE GUD71T/B-S can be considered for appropriately sized:

• Corporate offices
• Meeting rooms
• Conference rooms
• Restaurants
• Cafés
• Retail stores
• Showrooms
• Clinics
• Salons
• Reception areas
• Commercial halls

A professional HVAC heat-load calculation should be performed before installation to determine whether 2 Ton capacity is appropriate for the specific space.

Buy GREE GUD71T/B-S Ceiling Cassette AC in Pakistan

If you are searching for the GREE GUD71T/B-S price in Pakistan, this 2 Ton U-Match inverter ceiling cassette provides an effective combination of powerful airflow, DC inverter efficiency, Heat & Cool functionality, and discreet ceiling installation.

With approximately 24,000 BTU-class cooling, 4-Way Air Distribution, high airflow, Wi-Fi capability, R32 refrigerant, a built-in drain pump, and flexible control options, the GREE GUD71T/B-S is designed for professional commercial climate-control applications.

For best performance, installation should be completed by a qualified HVAC technician with proper ceiling access, drainage, refrigerant piping, electrical wiring, and outdoor-unit ventilation.

Frequently Asked Questions – GREE GUD71T/B-S Ceiling Cassette AC

1. Is GREE GUD71T/B-S a 2 Ton AC?

Yes. The GREE GUD71T/B-S is sold in the 2 Ton / approximately 24,000 BTU-class commercial cassette category.

2. What is the exact cooling capacity?

Its rated cooling output is approximately 7.1 kW.

3. What is the heating capacity?

The rated heating output is approximately 8.0 kW.

4. Is GREE GUD71T/B-S an inverter AC?

Yes. It belongs to GREE's U-Match DC Inverter range.

5. Is GREE GUD71T/B-S Heat & Cool?

Yes. The system provides both cooling and heating.

6. Which refrigerant does GUD71T/B-S use?

Current U-Match specifications identify R32 refrigerant.

7. Does GREE GUD71T/B-S have 4-Way Airflow?

Yes. Its ceiling cassette panel distributes conditioned air in four directions.

8. What is the airflow of GUD71T/B-S?

Rated airflow is approximately 1,400 m³/h.

9. Does GUD71T/B-S have a built-in drain pump?

Yes. The indoor cassette includes a built-in condensate pump.

10. What is the drain-pump lift?

The listed condensate pump lift is approximately 1,000 mm.

11. Does GREE GUD71T/B-S have Wi-Fi?

Yes. Current technical product data lists the GUD71T/B-S as pre-equipped with Wi-Fi capability.

12. Does it come with a wired controller?

The U-Match cassette platform supports a wired wall controller, with the exact controller supplied depending on market and package configuration.

13. Can a wireless remote be used?

Yes. An optional compatible infrared remote can be used with supported configurations.

14. Does it restart after a power failure?

Yes. Power Failure Recovery / Auto Restart allows compatible operation to resume after electricity is restored.

15. Is the filter washable?

Yes. The cassette uses a washable air filter for routine maintenance.

16. Is GREE GUD71T/B-S quiet?

Listed indoor sound-pressure levels are approximately 39–43 dB(A) depending on fan setting.

17. What is the rated cooling power consumption?

Rated cooling input is approximately 2.05 kW under specified testing conditions.

18. What is the rated heating power consumption?

Rated heating input is approximately 2.1 kW, depending on specification and operating conditions.

19. What is the cooling capacity range?

The inverter cooling range is approximately 2.4–8.0 kW.

20. What is the heating capacity range?

The listed heating range is approximately 2.2–9.0 kW.

21. What are the indoor-unit dimensions?

The indoor cassette body measures approximately 840 × 840 × 240 mm.

22. What is the cassette-panel size?

The decorative panel is approximately 950 × 950 × 52 mm.

23. How much does the indoor unit weigh?

The indoor cassette unit weighs approximately 29 kg, excluding other system components.

24. What is the maximum piping length?

Technical documentation lists a maximum refrigerant piping distance of approximately 50 meters for the GUD71 system.

25. What is the maximum height difference between units?

The maximum listed vertical difference is approximately 25 meters.

26. Is this cassette suitable for offices?

Yes. Its high airflow and four-way ceiling distribution make it suitable for appropriately sized offices and meeting areas.

27. Is it suitable for restaurants?

Yes. It can be suitable for restaurants and cafés when a professional heat-load calculation confirms that 2 Ton capacity is adequate.

28. Can it be installed in a shop or showroom?

Yes. Ceiling cassette systems are commonly useful in shops and showrooms because they provide wide air distribution without occupying wall space.

29. Does the entire indoor AC remain hidden?

Most of the cassette body is recessed above the suspended ceiling. The decorative cassette panel and air outlets remain visible inside the room.

30. Does a ceiling cassette require a false ceiling?

It normally requires sufficient ceiling void or suspended-ceiling space to accommodate the indoor cassette body, drainage, refrigerant piping, wiring, and service access.

31. Is a cassette AC better than a wall-mounted split AC?

Neither is automatically better. A cassette provides central ceiling installation and wider four-way airflow, while a wall-mounted split may be easier and less costly to install. The better choice depends on room layout and requirements.

32. Is GUD71T/B-S suitable for a large hall?

It can be suitable for some medium to large spaces, but halls often have high heat loads. A professional load calculation should determine whether one 2 Ton cassette is enough or multiple units are required.

33. What controller is used with GUD71T/B-S?

GREE U-Match technical documentation lists a wired controller as standard, while a compatible wireless remote can be optional depending on configuration.

34. What warranty does GREE GUD71T/B-S have in Pakistan?

One current Pakistani authorized-retailer listing advertises a 1-year official warranty for the GUD71T/B-S. Commercial warranty packages can vary, so the supplied GREE Pakistan warranty documentation should be treated as final.

35. Where can I buy GREE GUD71T/B-S in Pakistan?

The GREE GUD71T/B-S is available through commercial HVAC and GREE air-conditioning dealers in Pakistan. Buyers should confirm the current price, cassette panel, controller, outdoor unit, installation materials, warranty, and installation charges before purchase.
