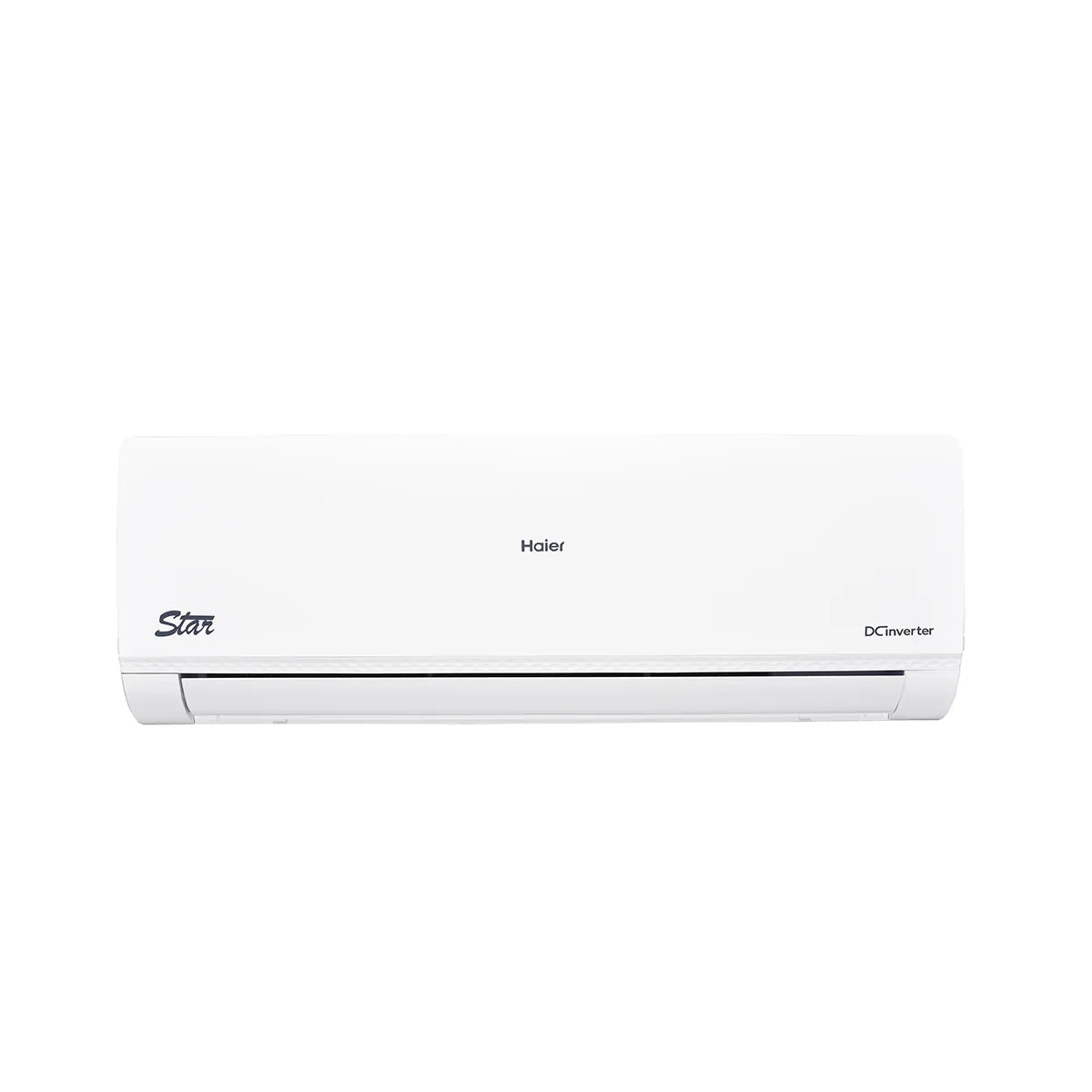

Haier HSU-13HFCA Star 1 Ton Triple Inverter AC

The Haier HSU-13HFCA Star, officially listed as HSU-13HFCA/023WDC(W), is a feature-rich 1 Ton Triple Inverter Split Air Conditioner designed to provide efficient cooling and heating for bedrooms, study rooms, offices, guest rooms, and other appropriately sized indoor spaces.

With approximately 13,300 BTU/h cooling capacity and 15,000 BTU/h heating capacity, the Haier 13HFCA provides powerful year-round climate control while its advanced inverter technology adjusts operation according to actual room demand.

The model combines AI ECO Mode, Energy Saving at 1.2A, Hyper PCB Technology, 46°C Full BTU Performance, Wi-Fi Smart Control, Self-Clean Technology, Turbo Mode, UPS Enabled operation, R32 Refrigerant, 750 m³/h Air Circulation, and Horizontal & Vertical Auto Swing.

For customers searching for a Haier 1 Ton Inverter AC in Pakistan, the HSU-13HFCA Star provides an excellent combination of cooling performance, energy management, smart connectivity, and long-term warranty protection.

1 Ton Triple Inverter AC

The Haier HSU-13HFCA is officially categorized as a 1 Ton DC Inverter Air Conditioner.

Its Triple Inverter technology is designed to regulate compressor operation according to the actual cooling or heating requirement.

This helps provide:

• Stable indoor temperature
• Smooth compressor operation
• Efficient energy management
• Reduced unnecessary power consumption
• Comfortable cooling and heating
• Reliable everyday performance

Actual electricity consumption depends on room load, thermostat settings, outdoor weather, installation quality, and usage duration.

13,300 BTU Cooling Capacity

The Haier HSU-13HFCA provides an official cooling capacity of approximately 13,300 BTU/h.

Its 1 Ton capacity can be suitable for appropriately sized:

• Bedrooms
• Study rooms
• Guest rooms
• Home offices
• Office cabins
• Small living spaces

Actual AC sizing should be based on room heat load rather than room type alone.

15,000 BTU Heating Capacity

The HSU-13HFCA provides approximately 15,000 BTU/h heating capacity.

This allows the same AC to provide comfortable cooling during summer and heating during colder months.

Heat & Cool Operation

The Haier 13HFCA provides both Cooling and Heating.

Its reversible operation makes it suitable for year-round climate control.

Triple Inverter Technology

Haier officially markets the HSU-13HFCA as a Triple Inverter AC.

The inverter system varies compressor output according to room requirements rather than continuously operating at maximum capacity.

This helps provide:

• Efficient cooling
• Smooth temperature control
• Reduced temperature fluctuations
• Controlled electricity usage
• More comfortable operation

AI ECO Mode

The AI ECO Mode is designed to optimize AC operation for energy-conscious use.

It intelligently manages cooling performance according to indoor requirements, helping balance comfort with electricity consumption.

Actual savings vary according to room conditions and operating settings.

Energy Saving at 1.2A

Haier highlights Energy Saving at 1.2A as one of the key technologies of the HSU-13HFCA.

Under suitable low-load operating conditions, the inverter system can operate at very low current levels.

The 1.2A figure should not be interpreted as the AC's fixed running current during all cooling conditions.

Hyper PCB Technology

The Hyper PCB system is designed to improve the reliability of the AC's electronic control system.

It supports stable operation under varying electrical conditions and helps protect important inverter electronics.

Hyper PCB contributes to:

• Stable inverter operation
• Improved electronic reliability
• Better performance during voltage variations
• Long-term system durability

46°C Full BTU Technology

Haier officially advertises 46°C Full BTU performance for the HSU-13HFCA.

The optimized cooling system is designed to maintain strong cooling performance at outdoor temperatures reaching approximately 46°C under specified conditions.

For Shopify product copy, the safest wording is:

“Haier 46°C Full BTU Technology”

rather than extending the claim beyond Haier's official specification.

Turbo Mode

The Turbo Mode provides high-output operation when faster temperature adjustment is required.

It can be useful when:

• Entering a hot room
• Rapid cooling is needed
• Faster heating is preferred
• Strong initial airflow is required

Wi-Fi Smart Control

The HSU-13HFCA includes Wi-Fi functionality.

Compatible smart connectivity allows users to control supported AC functions through a smartphone after setup.

This provides additional convenience for everyday temperature management.

Haismart App Support

Haier officially provides Haismart App support for the HSU-13HFCA.

Compatible smart control can allow supported functions to be managed through a connected mobile device.

App availability and functionality may vary according to software version.

Self-Clean Technology

The Haier Self-Clean Function helps reduce dirt accumulation on the indoor evaporator.

Haier's Cold Expansion Technology freezes moisture on the evaporator surface and helps wash accumulated dirt away during the defrosting process.

This helps:

• Maintain cleaner evaporator surfaces
• Reduce internal dirt buildup
• Support efficient airflow
• Maintain cooling performance
• Simplify routine maintenance

Regular filter cleaning and professional servicing are still recommended.

UPS Enabled

The Haier 13HFCA is officially listed as UPS Enabled.

With an additional compatible device, the AC can operate from a suitable UPS system during a power outage at low-frequency operation.

UPS performance depends on:

• UPS capacity
• Battery capacity
• Compatible Haier device
• AC operating load
• Other connected electrical loads

It should not be assumed that the AC will run directly from every ordinary household UPS.

R32 Refrigerant

The HSU-13HFCA officially uses R32 refrigerant.

R32 is widely used in modern inverter AC systems and offers effective heat-transfer performance with a lower Global Warming Potential than R410A.

750 m³/h Air Circulation

The Haier 13HFCA provides approximately 750 m³/h air circulation.

This helps distribute conditioned air effectively throughout an appropriately sized room.

Horizontal Auto Swing

The model includes Horizontal Louvers Auto Swing, helping distribute airflow from side to side.

Vertical Auto Swing

The HSU-13HFCA also includes Vertical Flapper Auto Swing.

Together, horizontal and vertical swing provide broader multidirectional airflow distribution.

Cooling Power Input

Official cooling power input is approximately:

• Minimum: 0.36 kW
• Maximum: 1.39 kW

Actual consumption changes continuously according to inverter demand.

Heating Power Input

Official heating power input is approximately:

• Minimum: 0.36 kW
• Maximum: 1.25 kW

Cooling Running Current

The official cooling current range is approximately:

• Minimum: 1.6A
• Maximum: 6.5A

Heating Running Current

The official heating current range is approximately:

• Minimum: 1.6A
• Maximum: 5.7A

Power Supply

Haier officially specifies:

• Phase: Single Phase
• Voltage: 220V
• Frequency: 50Hz

Professional electrical installation and correctly rated protection are recommended.

Indoor Unit Dimensions

The indoor unit dimensions are approximately:

850 × 295 × 210 mm

Outdoor Unit Dimensions

The outdoor unit dimensions are approximately:

800 × 345 × 560 mm

Indoor Unit Weight

The indoor unit weighs approximately 11.5 kg net.

Outdoor Unit Weight

The outdoor unit weighs approximately 27 kg net.

White Finish

The HSU-13HFCA/023WDC(W) is the White variant.

Its simple modern appearance complements:

• Bedrooms
• Study rooms
• Guest rooms
• Offices
• Contemporary residential interiors

Haier HSU-13HFCA Star Specifications

• Brand: Haier
• Model: HSU-13HFCA/023WDC(W)
• Common Retail Name: Haier 13HFCA Star
• Capacity: 1 Ton
• Type: DC Inverter Split AC
• Technology: Triple Inverter
• Function: Heat & Cool
• Cooling Capacity: 13,300 BTU/h
• Heating Capacity: 15,000 BTU/h
• 46°C Full BTU Technology: Yes
• AI ECO Mode: Yes
• Energy Saving at 1.2A: Yes
• Hyper PCB: Yes
• Wi-Fi: Yes
• Haismart App: Yes
• Self-Clean: Yes
• Turbo Mode: Yes
• UPS Enabled: Yes, additional compatible device required
• Vertical Auto Swing: Yes
• Horizontal Auto Swing: Yes
• Refrigerant: R32
• Air Circulation: 750 m³/h
• Cooling Power Input: 0.36–1.39 kW
• Heating Power Input: 0.36–1.25 kW
• Cooling Current: 1.6–6.5A
• Heating Current: 1.6–5.7A
• Power Supply: 1 Phase / 220V / 50Hz
• Indoor Dimensions: 850 × 295 × 210 mm
• Outdoor Dimensions: 800 × 345 × 560 mm
• Indoor Net Weight: 11.5 kg
• Outdoor Net Weight: 27 kg
• Color: White
• Compressor Warranty: 10 Years
• All Parts Warranty: 5 Years

Why Choose Haier HSU-13HFCA Star?

The Haier HSU-13HFCA Star 1 Ton Triple Inverter AC combines efficient cooling and heating with advanced smart and energy-management technologies.

Its 13,300 BTU cooling and 15,000 BTU heating capacity provide strong year-round climate control, while Triple Inverter Technology, AI ECO Mode, Energy Saving at 1.2A, and Hyper PCB support efficient and reliable operation.

Features including 46°C Full BTU Technology, Wi-Fi, Haismart App, Self-Clean, Turbo Mode, UPS Enabled operation, R32 refrigerant, and multidirectional Auto Swing provide a comprehensive package for modern home and office use.

For customers searching for a Haier 1 Ton Inverter AC in Pakistan, the 13HFCA offers a strong combination of performance, smart functionality, efficiency, and long-term manufacturer warranty.

Ideal for Small to Medium Rooms

Its 1 Ton capacity can be suitable for appropriately sized:

• Bedrooms
• Study rooms
• Guest rooms
• Home offices
• Office cabins

A proper heat-load calculation is recommended before selecting AC capacity.

Buy Haier HSU-13HFCA Star in Pakistan

If you are searching for the Haier 13HFCA Star price in Pakistan, this 1 Ton Triple Inverter AC combines Heat & Cool performance with smart and energy-saving features.

Its combination of 13,300 BTU cooling, AI ECO Mode, Hyper PCB, 46°C Full BTU, Wi-Fi, Self-Clean, Turbo, UPS support, and R32 refrigerant makes it a feature-rich option for everyday residential and office use.

Frequently Asked Questions – Haier HSU-13HFCA Star

1. Is Haier HSU-13HFCA a 1 Ton AC?

Yes. Haier officially categorizes the HSU-13HFCA as a 1 Ton DC Inverter AC.

2. What is the exact model number?

The current official model number is HSU-13HFCA/023WDC(W).

3. Why is it called 13HFCA Star?

“Star” is commonly used in Pakistani retail listings, while Haier's current official product page calls it Triple Inverter.

4. What is its cooling capacity?

The official cooling capacity is 13,300 BTU/h.

5. What is its heating capacity?

The official heating capacity is 15,000 BTU/h.

6. Is Haier 13HFCA Heat & Cool?

Yes. It provides both Cooling and Heating.

7. Is it a Triple Inverter AC?

Yes. Haier officially markets the HSU-13HFCA as Triple Inverter.

8. Is Haier 13HFCA a T3 AC?

No. Haier's current official page does not identify HSU-13HFCA as a T3 model.

9. Should I add T3 in the Shopify title?

No. Use Triple Inverter unless the exact physical unit or manufacturer documentation specifically identifies your stock as T3.

10. Does it have 46°C Full BTU?

Yes. Haier officially promotes 46°C Full BTU Technology.

11. What does 46°C Full BTU mean?

Haier states that its optimized cooling system is designed to maintain full cooling performance at approximately 46°C ambient temperature under specified conditions.

12. Does it have AI ECO Mode?

Yes. AI ECO Mode is officially included.

13. Does it have 1.2A Energy Saving?

Yes. Haier highlights Energy Saving at 1.2A as a key feature.

14. Does it always run at 1.2A?

No. Its normal official cooling current range is approximately 1.6–6.5A. The 1.2A figure relates to specific low-load energy-saving operation.

15. What is Hyper PCB?

Hyper PCB is Haier's enhanced electronic-control design intended to support stable operation under changing electrical conditions.

16. Does Haier 13HFCA have Wi-Fi?

Yes. Wi-Fi functionality is officially included.

17. Does it support a smartphone app?

Yes. Haier provides Haismart App support.

18. Does it have Self-Clean?

Yes. Self-Clean Technology is officially included.

19. How does Haier Self-Clean work?

Haier's Cold Expansion Technology freezes moisture on the evaporator and uses the defrosting process to help remove accumulated dirt.

20. Does it have Turbo Mode?

Yes. Turbo Mode is officially confirmed.

21. Does it have horizontal Auto Swing?

Yes. It has Horizontal Louvers Auto Swing.

22. Does it have vertical Auto Swing?

Yes. It also has Vertical Flapper Auto Swing.

23. Which refrigerant does it use?

Haier officially specifies R32 refrigerant.

24. What is its airflow capacity?

Official air circulation is approximately 750 m³/h.

25. Is Haier 13HFCA UPS Enabled?

Yes. Haier officially lists UPS Operation.

26. Can it run on any normal UPS?

Not automatically. Haier states that an additional compatible device is required, and the UPS system must have enough capacity.

27. What is its cooling power input?

Approximately 0.36–1.39 kW.

28. What is its heating power input?

Approximately 0.36–1.25 kW.

29. What is the cooling running current?

Approximately 1.6–6.5A.

30. What is the heating running current?

Approximately 1.6–5.7A.

31. What is its power supply?

Haier lists Single Phase, 220V, 50Hz.

32. Does it work on low voltage?

The model's Hyper PCB and inverter architecture are intended to support stable operation, and retailers advertise low-voltage capability. However, Haier's official exact page does not publish a numeric voltage operating range.

33. Should I publish a 150–260V range?

Not as a manufacturer-confirmed specification. Some retailers list 150–260V, but Haier's official page does not provide that exact range.

34. Does it have Anti-Corrosion protection?

Some exact-model retailers list anti-corrosion protection, but it is not separately shown in Haier's current official HSU-13HFCA feature table.

35. Does it have Blue Fin or Gold Fin?

Retailer descriptions conflict on the exact coating terminology. Do not hard-code Blue Fin or Gold Fin unless the carton/manual of your stock confirms it.

36. Does Haier 13HFCA have Dry Mode?

Dry/Dehumidification functionality is common in the series, but it is not separately listed in the current official HSU-13HFCA feature table. Check the supplied remote/manual if you need it as a rigid Shopify technical field.

37. What are the indoor-unit dimensions?

Approximately 850 × 295 × 210 mm.

38. What are the outdoor-unit dimensions?

Approximately 800 × 345 × 560 mm.

39. How much does the indoor unit weigh?

Approximately 11.5 kg net.

40. How much does the outdoor unit weigh?

Approximately 27 kg net.

41. What color is the HSU-13HFCA/023WDC(W)?

The (W) version is the White variant.

42. Is it suitable for a bedroom?

Yes. Its 1 Ton capacity can be suitable for appropriately sized bedrooms.

43. Can it be used in an office?

Yes. It can be suitable for office cabins and other spaces where the calculated heat load matches its capacity.

44. Is it suitable for a large lounge?

A large lounge may require more capacity. A heat-load calculation should be used instead of relying only on room type.

45. What is the compressor warranty?

Haier's current warranty for domestic ACs is 10 Years on the compressor including gas, subject to warranty terms.

46. What is the parts warranty?

For purchases covered by Haier's current 2026 warranty policy, the evaporator and other parts including gas are covered for 5 Years, subject to the official terms.

47. Does Haier provide 5 years warranty on all parts?

The exact product page states 5 Years Real Free Warranty on All Parts, while Haier's current warranty declaration gives the detailed 2026 structure for domestic AC components.

48. Where can I buy Haier 13HFCA Star in Pakistan?

The HSU-13HFCA is available through Haier dealers and electronics retailers across Pakistan. Compare current price, installation, delivery, official warranty, and after-sales support before purchase.
