PEL INV 12K SAVER NEO T3

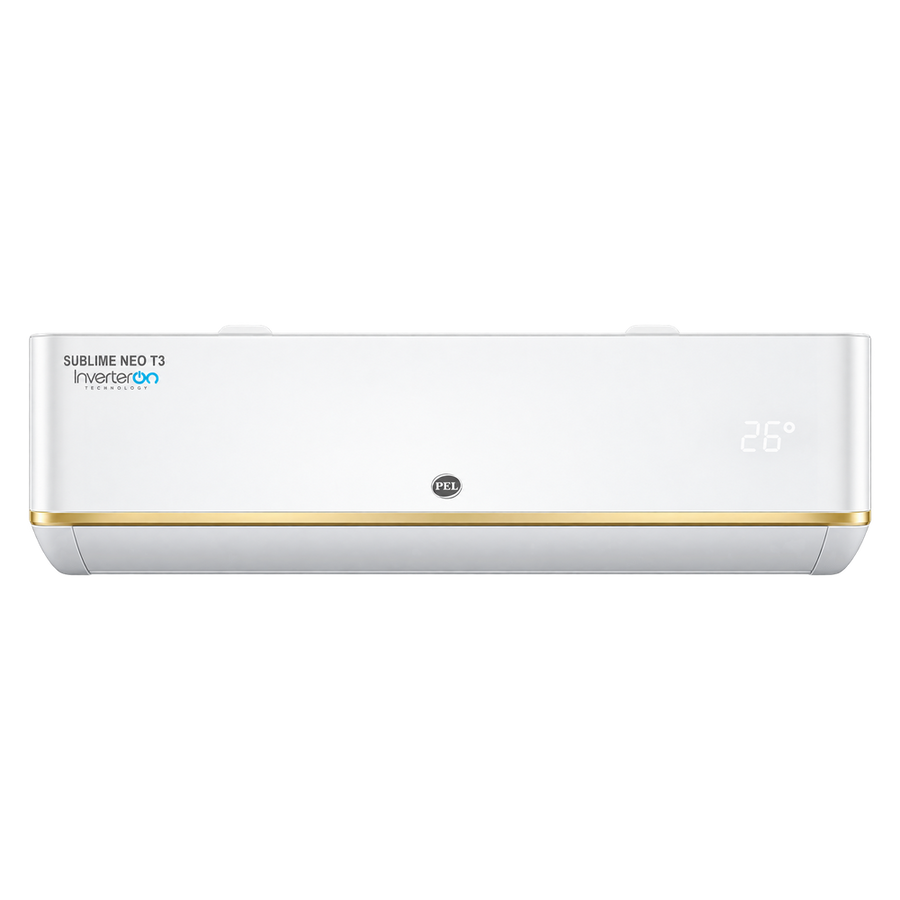

PEL INV 12K SAVER NEO T3 – 1 Ton T3 Inverter Heat & Cool AC

The PEL 12K Saver Neo T3 is a 1 Ton T3 Inverter Air Conditioner designed for efficient cooling and heating in Pakistan’s demanding weather conditions. Its T3 technology provides reliable performance during high ambient temperatures, while inverter operation automatically adjusts compressor output according to room requirements to maintain comfortable temperatures with reduced electricity consumption.

The unit features Heat & Cool functionality, making it suitable for year-round use. It also includes 3-Stage Ampere Lock / Gen Mode, allowing users to manage electricity consumption according to available power. The AC can start at voltage as low as approximately 155V and provides powerful cooling at ambient temperatures up to 50°C.

For improved efficiency and durability, the PEL 12K Saver Neo T3 uses R32 refrigerant, supports solar power operation, and incorporates corrosion-resistant protection for longer service life. With an airflow volume of 560 m³/h, it provides effective air circulation for bedrooms, offices, and small-to-medium-sized rooms.

Key Features

• Brand: PEL

• Model: 12K Saver Neo T3

• Capacity: 1 Ton / 12,000 BTU Class

• Type: Inverter Split AC

• Climate Type: T3

• Function: Heat & Cool

• Rated Cooling Capacity: 2,989W

• Rated Heating Capacity: 12,000 BTU/h

• T3 High-Temperature Performance

• 3-Stage Ampere Lock

• Gen Mode

• Energy-Efficient Inverter Technology

• Low Voltage Startup: Approx. 155V

• Powerful Cooling up to 50°C Ambient Temperature

• Solar Power Support

• Corrosion & Rust Protection

• R32 Refrigerant

• Rated Cooling Current: 5.31A

• Rated Heating Current: 4.5A

• Cooling Power Input: 1,196W

• Heating Power Input: 1,049W

• Power Supply: 220–240V / 50Hz / 1 Phase

• Refrigerant Charge: R32 / 0.49kg

• Air Flow Volume: 560 m³/h

• Outdoor Noise Level: 50 dB(A)

• Indoor Unit Weight: 8 kg

• Outdoor Unit Weight: 22 kg

• Indoor Unit Dimensions: 790 × 275 × 192 mm

• Outdoor Unit Dimensions: 712 × 276 × 459 mm

• Compressor Warranty: 10 Years

• PCB Kit Warranty: 5 Years

• Parts Warranty: 5 Years
