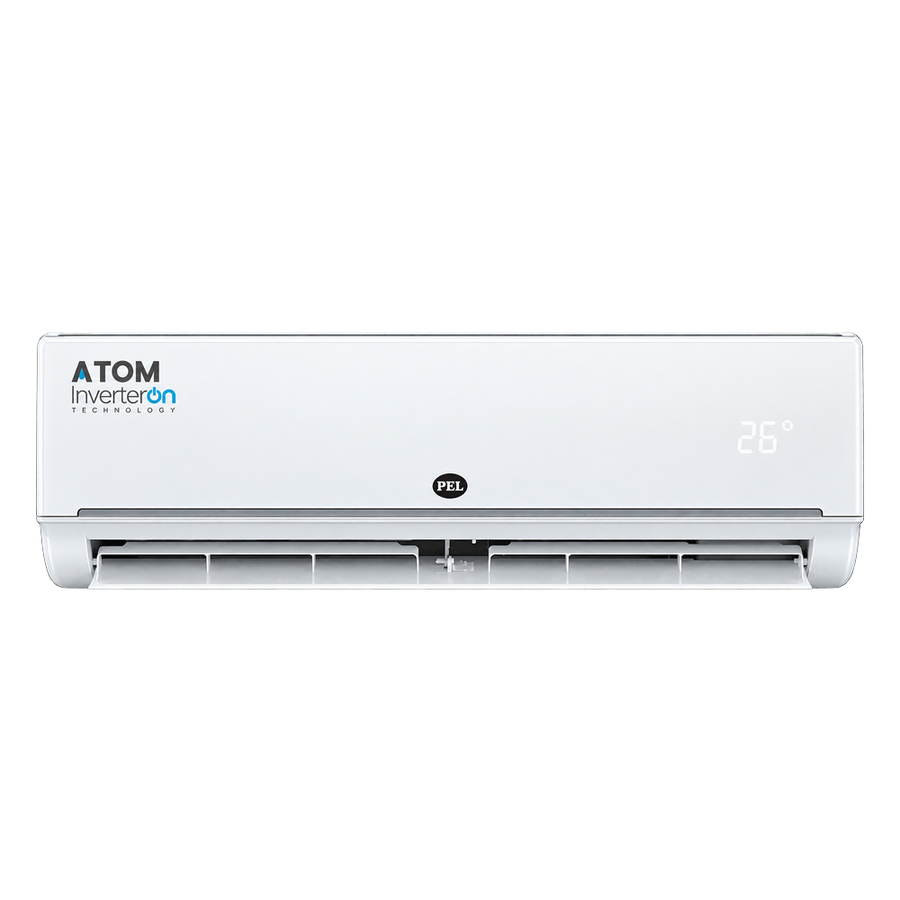

PEL INV A/C 12K ATOM (H&C) WHT

PEL INV A/C 12K ATOM (H&C) WHITE – 1 Ton Inverter Heat & Cool AC

The PEL 12K ATOM (H&C) White is a 1 Ton Inverter Air Conditioner designed for efficient cooling and heating throughout the year. It provides a rated cooling capacity of 3,400W and heating capacity of 3,420W, making it suitable for bedrooms, offices, and small-to-medium-sized rooms. Its Rotary Inverter Compressor adjusts performance according to temperature requirements to maintain comfortable indoor conditions while improving electricity efficiency.

The PEL ATOM series offers rapid cooling in approximately 30 seconds and fast heating in approximately 60 seconds, helping users reach the desired room temperature quickly. It also includes self-cleaning technology, which helps remove moisture from the indoor unit, while Gold Fin protection helps protect the coils against corrosion and demanding environmental conditions.

The AC supports solar power operation and can operate efficiently at voltages as low as 165V, making it practical where voltage fluctuations occur. It uses R32 refrigerant and copper components for efficient heat transfer and reliable everyday performance.

Key Features

• Brand: PEL

• Model: 12K ATOM

• Series: InverterOn ATOM

• Capacity: 1 Ton

• Type: Inverter Split AC

• Function: Heat & Cool

• Color: White

• Rated Cooling Capacity: 3,400W (1,000–3,770W)

• Rated Heating Capacity: 3,420W (1,000–3,810W)

• Rotary Inverter Compressor

• Energy-Efficient Operation

• Rapid Cooling – Approx. 30 Seconds

• Fast Heating – Approx. 60 Seconds

• Self-Cleaning Function

• Gold Fin Protection

• Solar Power Support

• Low Voltage Operation

• Operating Voltage Range: 165–265V

• Rated Cooling Current: 5.8A

• Rated Heating Current: 4.5A

• Cooling Power Input: 1,130W (290–1,500W)

• Heating Power Input: 1,005W (290–1,720W)

• Energy Efficiency Ratio (EER): 3.0

• Power Supply: 220–240V / 50Hz / 1 Phase

• Refrigerant: R32

• Expansion Device Material: Copper

• Indoor Noise Levels: 43 / 40 / 38 / 31 / 27 / 22 dB(A)

• Outdoor Noise Level: 54 dB(A)

• Indoor Unit Net Weight: 7 kg

• Outdoor Unit Net Weight: 20 kg

• Indoor Unit Dimensions: 777 × 250 × 201 mm

• Outdoor Unit Dimensions: 712 × 276 × 459 mm

• Compressor Warranty: 10 Years

• PCB Kit Warranty: 5 Years

• Parts Warranty: 5 Years
