PEL INV A/C 18K ATOM (H&C) WHT

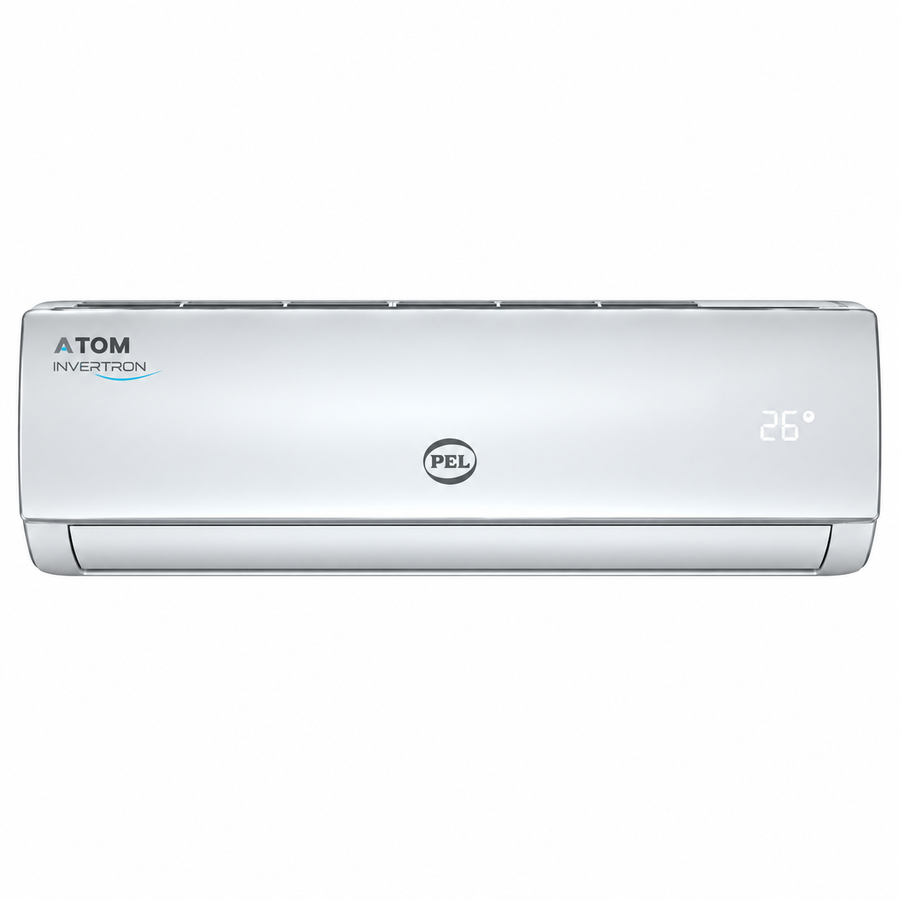

PEL INV A/C 18K ATOM (H&C) WHITE – 1.5 Ton Inverter Heat & Cool AC

The PEL 18K ATOM (H&C) White is a 1.5 Ton Inverter Air Conditioner designed to provide efficient cooling and heating for year-round comfort. It offers a rated cooling capacity of approximately 5,280W and heating capacity of 5,420W, making it suitable for medium-to-large bedrooms, lounges, offices, and other spacious indoor areas. Its Rotary Inverter Compressor adjusts operating performance according to room requirements to maintain a stable temperature while improving electricity efficiency.

The PEL ATOM series features 3-Stage Ampere Lock, allowing users to manage electricity consumption at different power levels. It also offers rapid cooling in around 30 seconds, fast heating in around 60 seconds, energy-saving operation, self-cleaning, and low-voltage performance. PEL also highlights solar compatibility, allowing the unit to work more effectively in energy-conscious home setups.

For improved durability, the AC features Gold Fin protection to help protect the coils against corrosion and demanding weather conditions. It uses R32 refrigerant and copper components for efficient heat transfer. The 18K model operates within a 187–265V voltage range, supporting stable performance where voltage fluctuations are common.

Key Features

• Brand: PEL

• Model: 18K ATOM

• Series: InverterOn ATOM

• Color: White

• Capacity: 1.5 Ton

• Type: Inverter Split AC

• Function: Heat & Cool

• Rated Cooling Capacity: 5,280W (1,300–5,860W)

• Rated Heating Capacity: 5,420W (1,300–6,300W)

• Rotary Inverter Compressor

• 3-Stage Ampere Lock

• Energy-Saving Inverter Technology

• Rapid Cooling – Approx. 30 Seconds

• Fast Heating – Approx. 60 Seconds

• Self-Cleaning Function

• Gold Fin Protection

• Solar Power Support

• Low Voltage Operation

• Voltage Range: 187–265V

• Rated Cooling Current: 7.8A

• Rated Heating Current: 7.1A

• Cooling Power Input: 1,645W (420–2,500W)

• Heating Power Input: 1,500W (420–2,500W)

• Power Supply: 220–240V / 50Hz / 1 Phase

• Refrigerant: R32

• Expansion Device Material: Copper

• Indoor Noise Levels: 44 / 41 / 36 / 30 / 28 dB(A)

• Outdoor Noise Level: 54 dB(A)

• Indoor Unit Net Weight: 10 kg

• Outdoor Unit Net Weight: 24.5 kg

• Indoor Unit Dimensions: 910 × 294 × 206 mm

• Outdoor Unit Dimensions: 795 × 305 × 549 mm

• Compressor Warranty: 10 Years

• PCB Kit Warranty: 5 Years

• Parts Warranty: 5 Years
