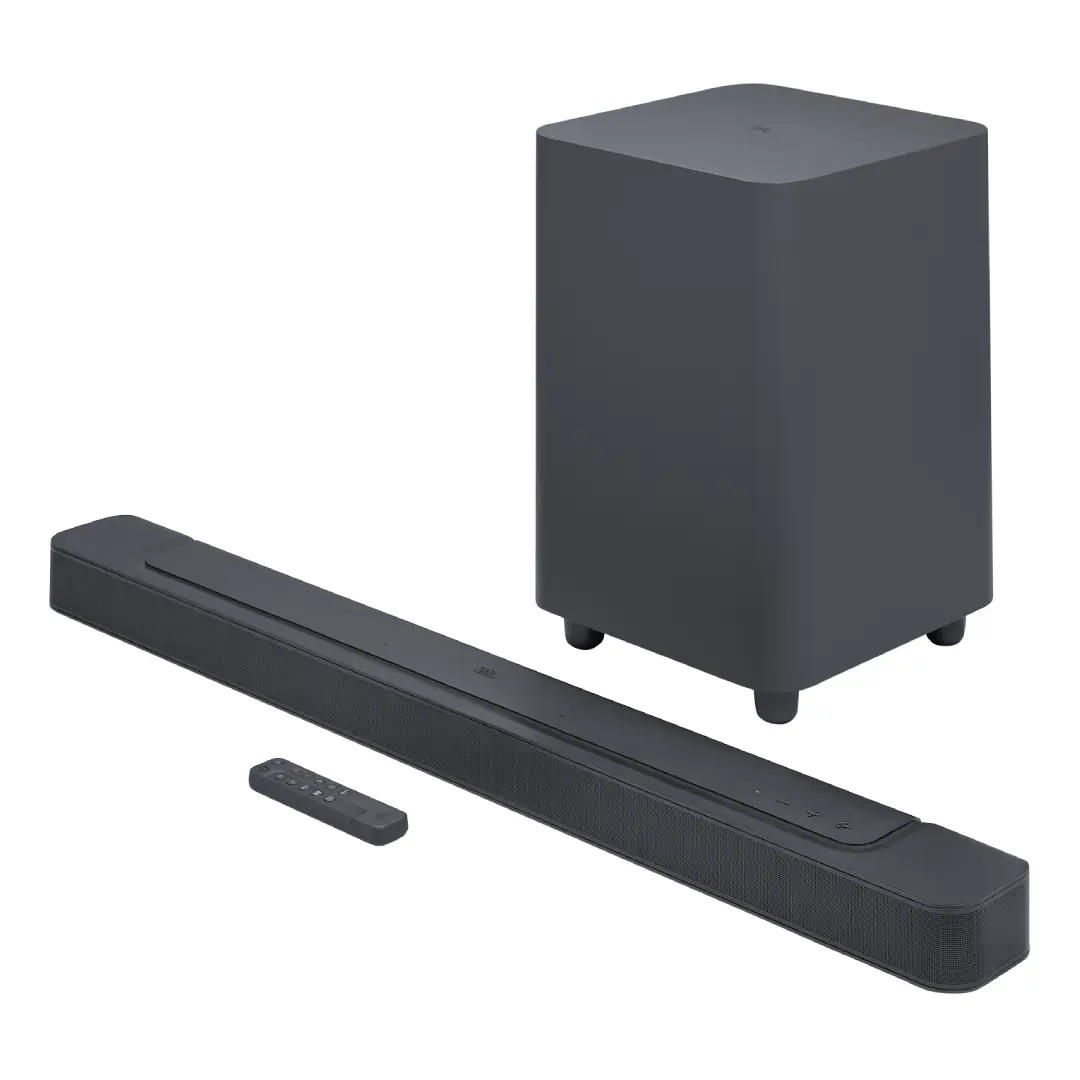

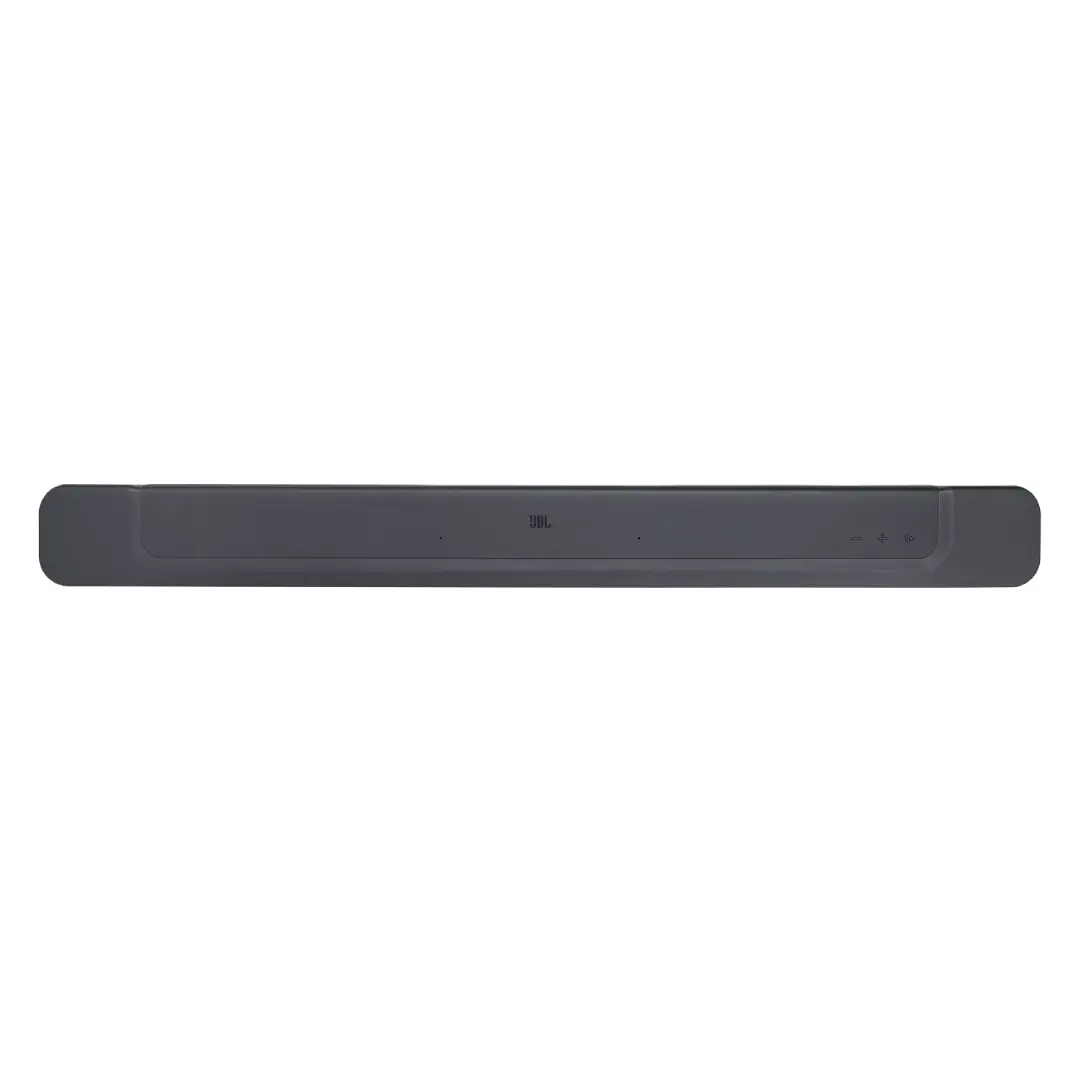

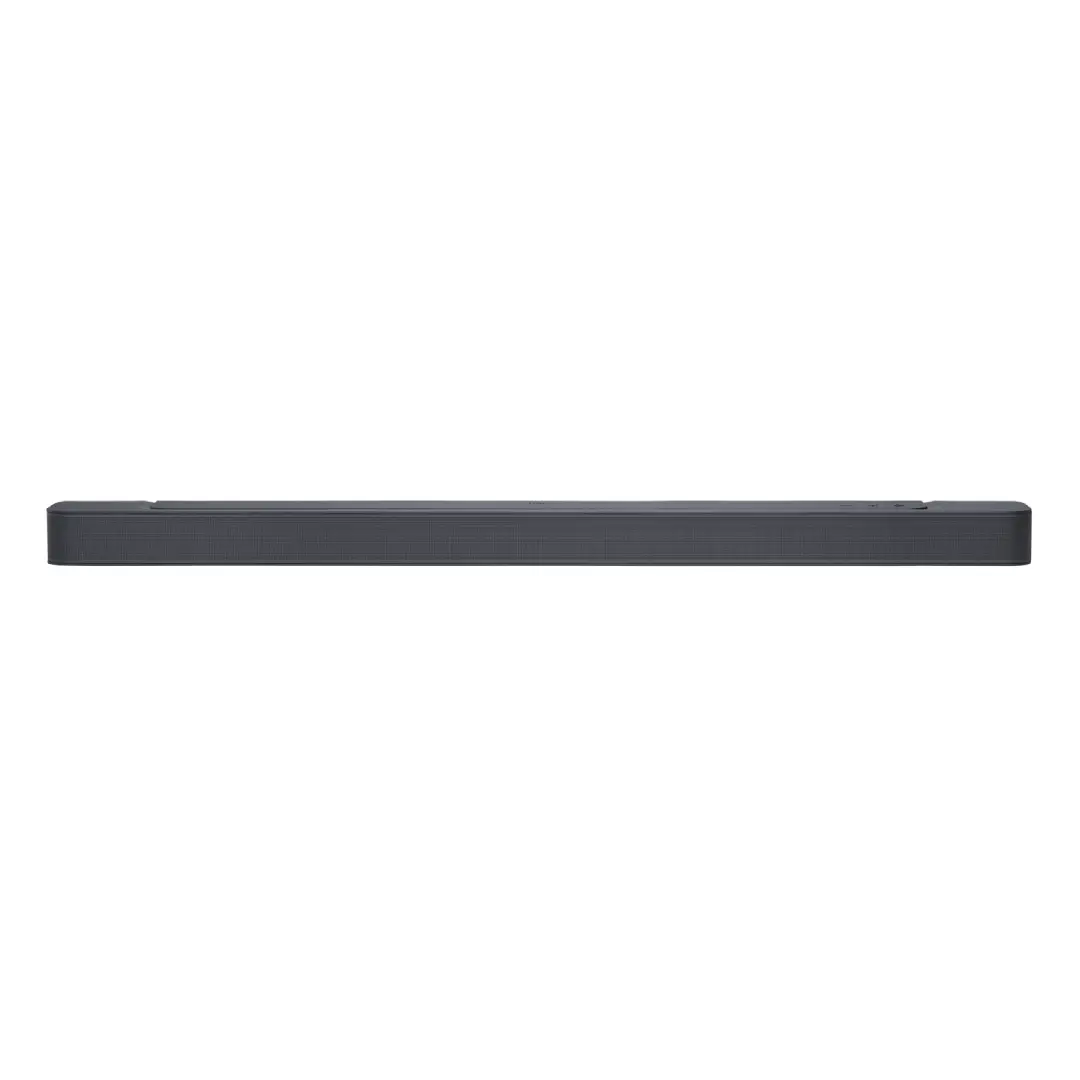

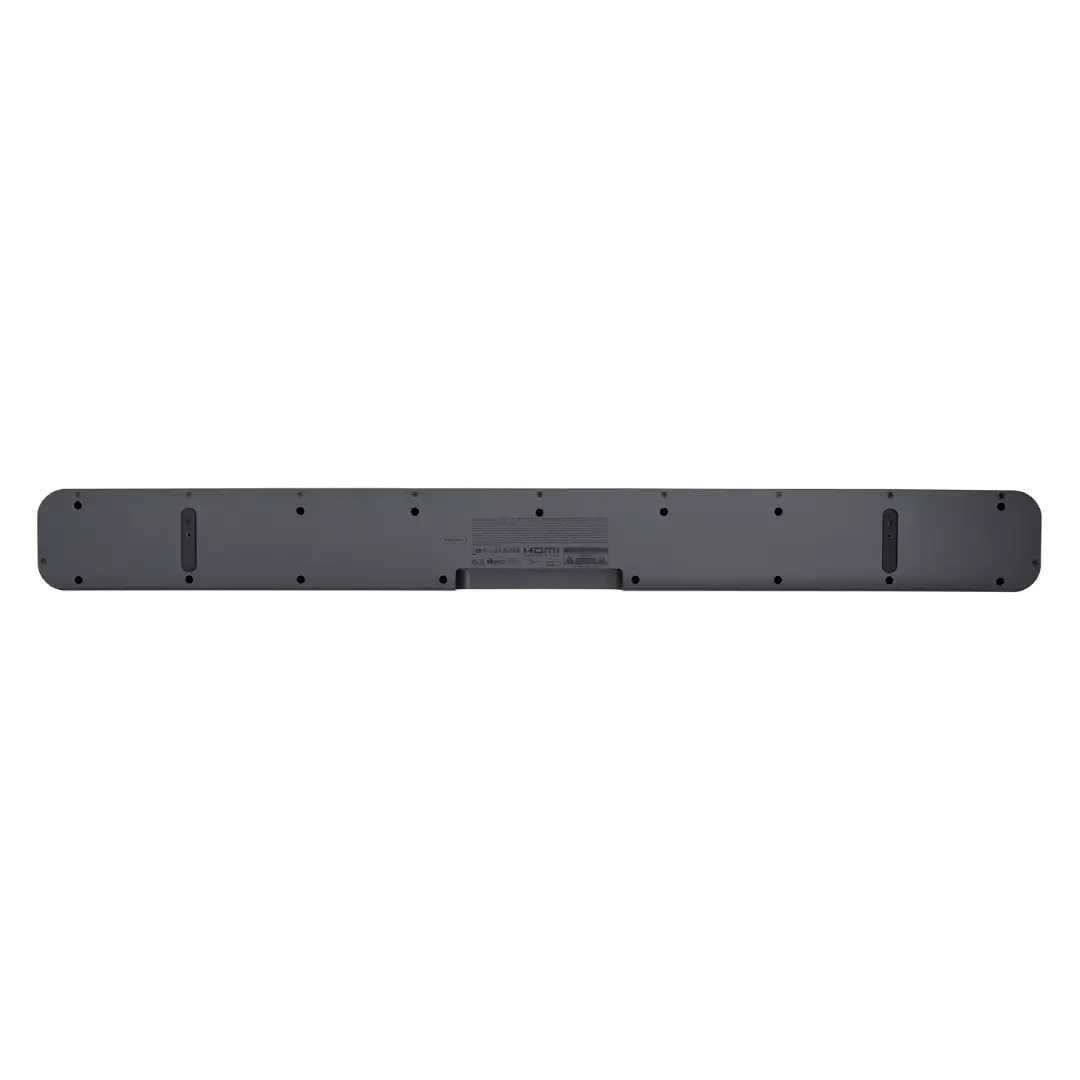

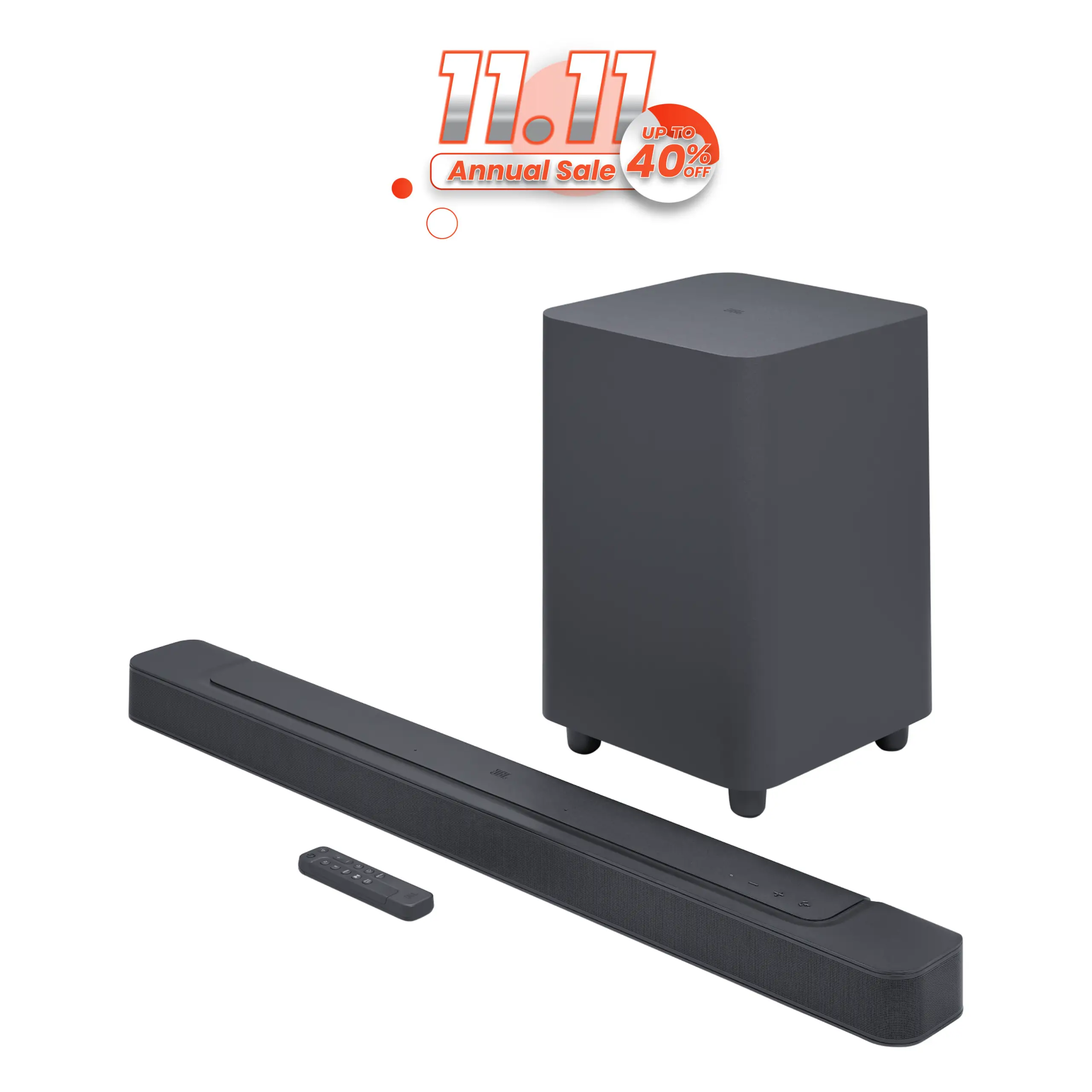

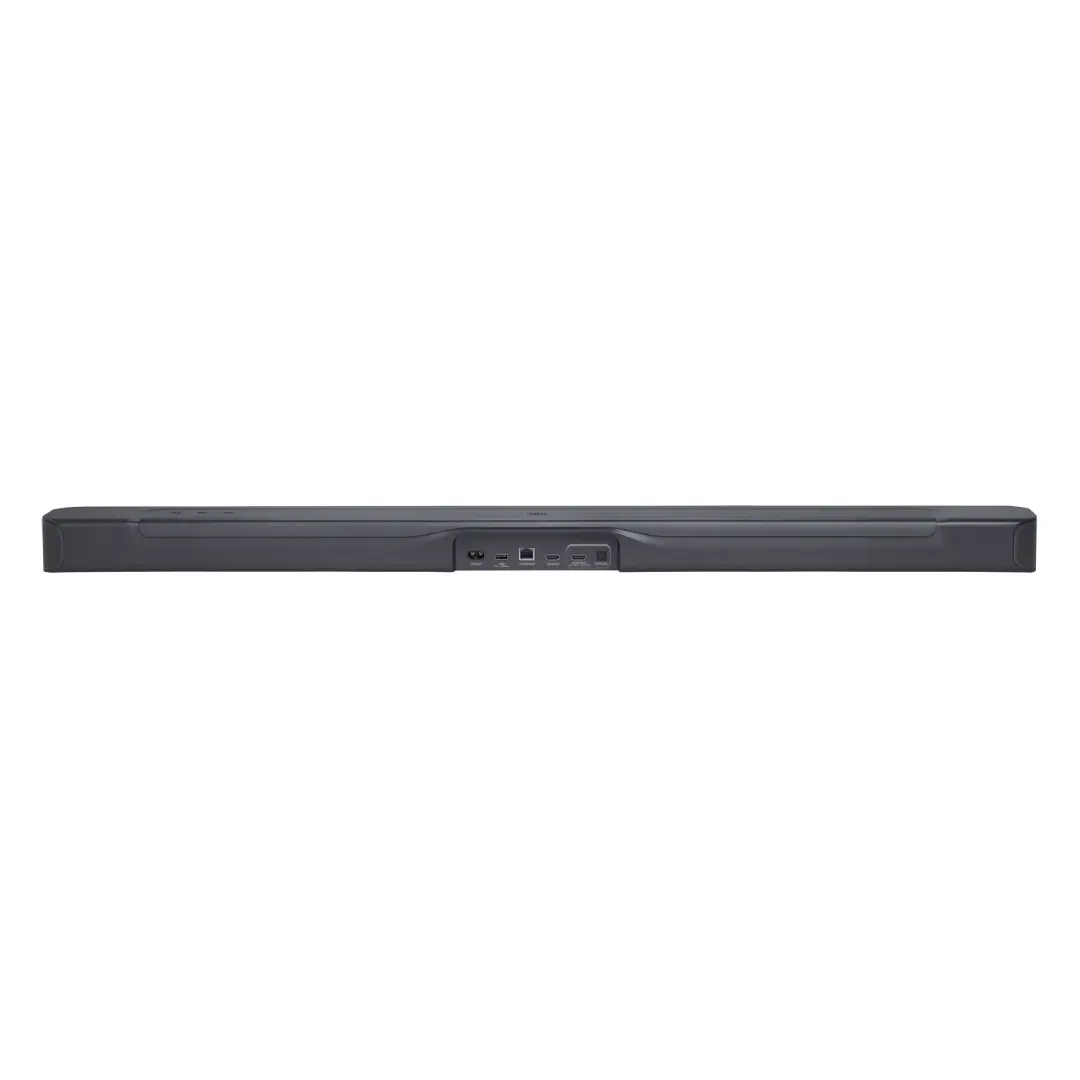

JBL BAR 500 5.1 Channel Soundbar with Dolby Atmos®

₨ 160,000

Experience immersive 3D surround sound with the JBL BAR 500 5.1 Channel Soundbar featuring Dolby Atmos® for a cinematic experience at home. Enjoy powerful bass from its wireless subwoofer and seamless streaming via Bluetooth and Wi-Fi. Buy the JBL BAR 500 on easy monthly installments and elevate your home entertainment effortlessly.

General Specifications

Power Supply: 100 – 240V AC, ~ 50/60Hz
Networked Standby Power: < 2.0 W
Operating Temperature: 0°C – 45°C

Audio Specifications

Total Speaker Power Output (Max @THD 1%): 590W
Soundbar Output Power (Max @THD 1%): 290W
Subwoofer Output Power (Max @THD 1%): 300W
Soundbar Transducers: 4x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters
Subwoofer Transducer: 10” (260mm)
Frequency Response: 35Hz – 20kHz (-6dB)
Audio Inputs: 1 Optical, Bluetooth, USB (Note: USB playback available in US version only; others for Service use)

Dimensions & Weight

Soundbar Dimensions (W x H x D): 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’
Subwoofer Dimensions (W x H x D): 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
Soundbar Weight: 2.8 kg / 6.2 lbs
Subwoofer Weight: 10 kg / 22 lbs
Packaging Dimensions (W x H x D): 1105 x 370 x 475 mm / 43.5″ x 14.6″ x 18.7″
Packaging Weight: 16.2 kg / 35.6 lbs

Control and Connection Specifications

USB Port: Type A
USB Rating: 5V DC, 0.5A
Supported File Format: MP3
MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 Sampling Rate: 16 – 48 kHz
MP3 Bitrate: 80 – 320 kbps

Bluetooth Connectivity

Bluetooth Version: 5.0
Profiles Supported: A2DP 1.2, AVRCP 1.5
Transmitter Frequency Range: 2400 MHz – 2483.5 MHz
Transmitter Power: < 15 dBm (EIRP)

Wi-Fi Specifications

Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)
2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz (2.4 GHz ISM Band)
2.4G Wi-Fi Transmitter Power: < 20 dBm (EIRP)
5G Wi-Fi Frequency Range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi Transmitter Power:
- 5.15-5.25GHz < 23dBm
- 5.25-5.35GHz & 5.47-5.725GHz < 20dBm
- 5.725-5.825GHz < 14dBm (EIRP)

2.4G Wireless Transmission

Transmitter Frequency Range: 2406 – 2474 MHz
Transmitter Power: < 10 dBm (EIRP)

Video Specifications

HDMI Video Input: 1
HDMI Video Output (with eARC): 1
HDMI HDCP Version: 2.3
HDR Pass Through: HDR10, Dolby Vision
