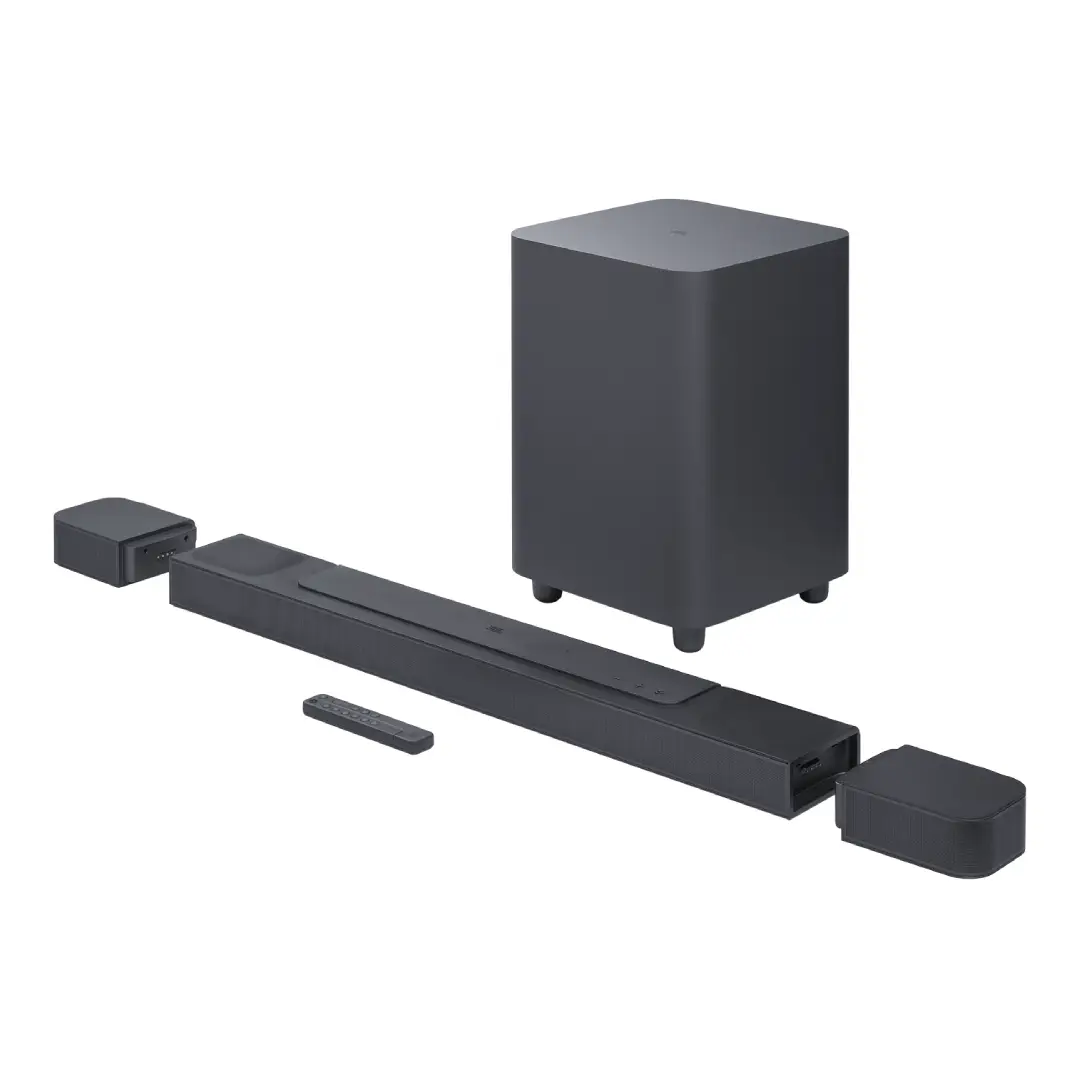

JBL BAR 800 Dolby Atmos Soundbar 7.1CH Surround Sound

General Specifications

• Power Supply: 100 – 240V AC, ~ 50/60Hz
• Networked Standby Power: < 2.0W
• Operating Temperature: 0°C – 45°C

Audio Specifications

• Total Speaker Power Output (Max @THD 1%): 720W
• Soundbar Output Power (Max @THD 1%): 340W
• Surround Speaker Output Power (Max @THD 1%): 2x 40W
• Subwoofer Output Power (Max @THD 1%): 300W
• Soundbar Transducers:

• • 3x (46×90)mm racetrack drivers

  • 3x 0.75″ (20mm) tweeters

  • 2x 2.75″ (70mm) up-firing full-range drivers

• Surround Speaker Transducer: 1x (46×90)mm racetrack driver
• Subwoofer Transducer: 10” (260mm)
• Frequency Response: 35Hz – 20kHz (-6dB)
• Audio Inputs: 1 Optical, Bluetooth, Chromecast Built-in, AirPlay, Alexa MRM, USB (Note: USB playback available in US version only; others for Service use)

Dimensions & Weight

• Total Soundbar Dimensions (W x H x D): 1174 x 56 x 120 mm / 46.2″ x 2.2″ x 4.7″
• Main Soundbar Dimensions (W x H x D): 884 x 56 x 120 mm / 34.8″ x 2.2″ x 4.7″
• Detachable Surround Speaker Dimensions (Each): 145 x 56 x 120 mm / 5.7″ x 2.2″ x 4.7″
• Subwoofer Dimensions (W x H x D): 305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
• Soundbar Weight: 3.4 kg / 7.4 lbs
• Detachable Surround Speaker Weight (Each): 1.3 kg / 2.8 lbs
• Subwoofer Weight: 10 kg / 22 lbs
• Packaging Dimensions (W x H x D): 1000 x 375 x 475 mm / 39.4″ x 14.8″ x 18.7″
• Packaging Weight: 18.9 kg / 41.6 lbs

Control and Connection Specifications

• USB Port: Type A
• USB Rating: 5V DC, 0.5A
• Supported File Format: MP3
• MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 Sampling Rate: 16 – 48 kHz
• MP3 Bitrate: 80 – 320 kbps

Bluetooth Connectivity

• Bluetooth Version: 5.0
• Supported Profiles: A2DP 1.2, AVRCP 1.5
• Transmitter Frequency Range: 2400 MHz – 2483.5 MHz
• Transmitter Power: < 15 dBm (EIRP)

Wi-Fi Specifications

• Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)
• 2.4G Wi-Fi Frequency Range: 2412 – 2472 MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi Transmitter Power: < 20 dBm (EIRP)
• 5G Wi-Fi Frequency Range: 5.15 – 5.35GHz, 5.470 – 5.725GHz, 5.725 – 5.825GHz
• 5G Wi-Fi Transmitter Power:

• • 5.15–5.25GHz < 23 dBm

  • 5.25–5.35GHz & 5.47–5.725GHz < 20 dBm

  • 5.725–5.825GHz < 14 dBm (EIRP)

2.4G Wireless Transmission

• Transmitter Frequency Range: 2406 – 2474 MHz
• Transmitter Power: < 10 dBm (EIRP)

Battery

• Type: Lithium Battery
• Capacity: 3.635V, 3283mAh

Video Specifications

• HDMI Video Input: 1
• HDMI Video Output (with eARC): 1
• HDMI HDCP Version: 2.3
• HDR Pass Through: HDR10, Dolby Vision
